China Angle Steel Transposition Tower Supplier
As the core supplier of high-voltage transmission towers, relying on the strength of national high-tech enterprises and Qingdao's local complete industrial chain, Qingdao Anbang New Energy has been deeply involved in the field of intelligent manufacturing of power steel structures for more than ten years, focusing on the core needs of high-voltage and ultra-high voltage transmission lines, and creating a product matrix of high-quality angle steel transposition towers.
What is an angle steel transposition tower？
The angle steel transposition tower is an exclusive special tower for high-voltage and ultra-high voltage transmission lines, with Q235/Q355 high-strength angle steel as the core main material, assembled into a space truss structure through bolted connection, and the core function is to realize the periodic spatial position exchange of three-phase conductors, in layman's terms, it is to take turns changing seats for three-phase conductors.
Different from ordinary angle steel transmission towers, its structural design pays more attention to the spatial adaptability and force stability of wire transposition, and adds special transposition fittings and wire guide structures, which can accurately adjust the phase position of the wire, so that the three-phase wire occupies different spatial positions on the whole line, so as to balance the electrical parameters such as three-phase inductance, capacitance, and impedance.
As a key special pole tower of high-voltage transmission lines, it not only undertakes the basic functions of wire mounting, load bearing, wind and earthquake resistance, but also effectively protects generators, transformers and other power equipment, prevents relay protection from malfunctioning, reduces inductive interference to surrounding communication lines, and ensures the safety, efficiency and stability of long-distance transmission.
What are the Classifications of Galvanized Angle Steel Transposition Tower?
Qingdao Anbang New Energy angle steel transposition tower has a complete category, combined with the three core dimensions of voltage level, transposition mode and structural type, each series strictly follows the national standard production of the power industry, taking into account the universality and exclusive adaptability, and accurately matches the individual needs of different high-voltage transmission projects:
1. By voltage level
Covering high-pressure angle steel transposition towers (110kV-220kV) and ultra-high pressure angle steel transposition towers (≥330kV).
The high-voltage model is suitable for industrial parks and cross-regional transmission branch lines to meet the needs of conventional long-distance transmission and transposition.
The UHV model is designed with structural reinforcement to optimize truss density and node bearing, and is suitable for long-distance and large-capacity trunk transmission lines of 500kV and above, which can achieve more accurate phase adjustment and ensure the balance of three-phase parameters.
2. Divide by transposition
It is divided into two categories: single-tower transposition type and double-tower transposition type.
The single-tower transposition type adopts a compact design, with a streamlined structure and a small footprint, which is suitable for scenarios with limited line space, and can complete the three-phase conductor transposition on a single tower.
The two-tower transposition type is the recommended scheme for UHV lines of 500kV and above, which realizes wire transposition through the synergy of the two towers, with stronger stability, and is suitable for high-load and long-distance transmission scenarios, and is usually equipped with 1-2 sets of transposition towers every 100km line.
3. Divided by structural type
It is divided into wine glass type angle steel transposition tower, cat head type angle steel transposition tower, and dry type angle steel transposition tower.
The wine glass type is adapted to horizontally arrange the wires, and the transposition operation is convenient, which is the mainstream selection of high-voltage lines.
The cat head type adopts a triangular arrangement of wire design, which has outstanding wind resistance and ice resistance, and is suitable for complex environments such as coastal and alpine environments.
The dry-type structure has large stiffness and strong bearing capacity, and is suitable for heavy loads and large-span transposition scenarios.
Product Specifications
|
Parameter Items |
Detailed Specifications |
|
Main Material |
Q235B, Q355B high-strength carbon structural angle steel |
|
Applicable Voltage Level |
110kV-1000kV (High voltage: 110kV-220kV, UHV: ≥330kV) |
|
Applicable Height |
15m~50m (supports non-standard customization, suitable for different transposition scenarios) |
|
Angle Steel Specifications |
∠50×5~∠200×20 (adapted according to voltage level and load requirements) |
|
Anti-corrosion Process |
Overall hot-dip galvanizing, zinc layer thickness ≥85μm, additional anti-corrosion reinforcement at nodes |
|
Design Wind Resistance |
120km/h~180km/h, can be customized and strengthened on demand |
|
Seismic Fortification |
8-degree seismic intensity, can be customized and reinforced for complex working conditions |
|
Transposition Accuracy |
Phase angle adjustment accuracy ±2°, ensuring three-phase parameter balance |
|
Connection Method |
High-strength bolt connection, equipped with special fasteners, anti-loosening and anti-corrosion |
|
Implementation Standard |
GB50017 Steel Structure Code, DL/T 646 Technical Conditions for Manufacturing of Transmission and Distribution Steel Pipe Structures, etc. |
In which scenarios can Angle Steel Transposition Towers be used?
|
Application Scenarios |
Core Requirements |
Recommended Product Series |
Key Technical Features |
|
High-Voltage Transmission Lines (Long-distance power grids, corridor transposition) |
Stable structure, strong phase transposition function, high wind & ice resistance, long service life |
Standard Angle Steel Transposition Towers, Heavy-Duty Angle Steel Transposition Towers |
Hot-dip galvanized Q235 / Q355 / Q420B angle steel; modular bolted assembly; designed for conductor transposition & phase sequence exchange; wind resistance up to Grade 11–12; strong ice and snow load capacity. |
|
Urban & Suburban Power Grids |
Compact layout, land-saving, reliable insulation coordination, easy installation |
Medium-Height Angle Steel Transposition Towers, Narrow-Base Angle Steel Transposition Towers |
Optimized tower body size for limited urban space; stable transposition performance; low foundation cost; fast construction and convenient later inspection. |
|
Mountain & Hilly Areas |
Adaptable to complex terrain, high structural rigidity, low maintenance |
Mountain-Type Angle Steel Transposition Towers, Slope-Adapted Angle Steel Transposition Towers |
High-strength angle steel structure; good stability on slopes and uneven terrain; strong corrosion resistance; suitable for remote areas with difficult transportation. |
|
Industrial & New Energy Zones(Wind/solar farms, industrial parks) |
High load capacity, anti-vibration, anti-dust, customizable |
Customized Angle Steel Transposition Towers, Heavy-Load Angle Steel Transposition Towers |
Fully customizable height, span and transposition mode; compatible with high-voltage overhead lines in new energy bases; strong durability in dusty and humid environments. |
- View as
Galvanized Angle Steel Transposition Tower
Qingdao Anbang New Energy Factory presents with craftsmanship and dedication the Galvanized Angle Steel Transposition Tower, a core phase-shifting device for power transmission lines. Relying on advanced military-grade processing technology, it integrates extreme stability with long-term corrosion resistance, specifically designed for ultra-high voltage, long-distance transmission lines. It offers a one-stop solution to the problem of three-phase imbalance, ensuring safe operation of the power grid for thirty years, making it the preferred and trusted choice for national-level power grid projects.

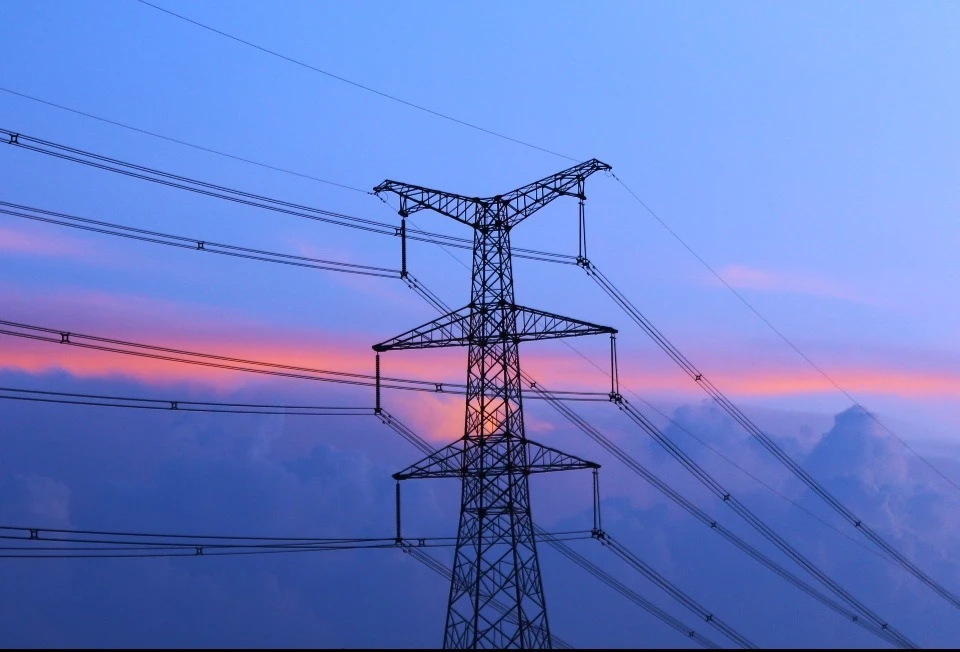

High Voltage Angle Steel Transposition Tower
Located in Qingdao, China, Anbang New Energy is a source factory with strong capabilities. With precision manufacturing, it focuses on the research, design, and large-scale production of High Voltage Angle Steel Transposition Towers, providing high-performance and highly reliable phase-shifting support solutions for global ultra-high voltage transmission projects.
Angle Steel Power Transmission Transposition Tower
The Angle Steel Power Transmission Transposition Tower is a specialized lattice-type iron tower widely used in high-voltage and ultra-high-voltage power transmission line. If you are looking for a reliable manufacturer and supplier, please choose Anbang, we can offer technical support.

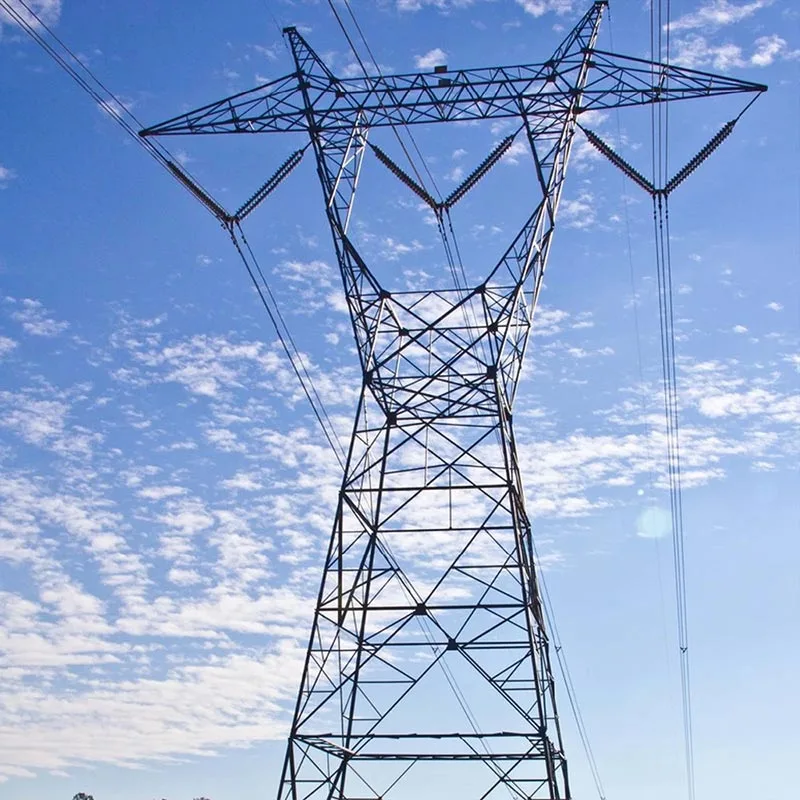

Angle Steel Lattice Transposition Tower
Anbang is a professional supplier of Angle Steel Lattice Transposition Tower, this durable product is a specialized transmission line structure widely used in high-voltage and extra-high-voltage power transmission projects, typically applied to 110kV, 220kV, 330kV and above power grids.

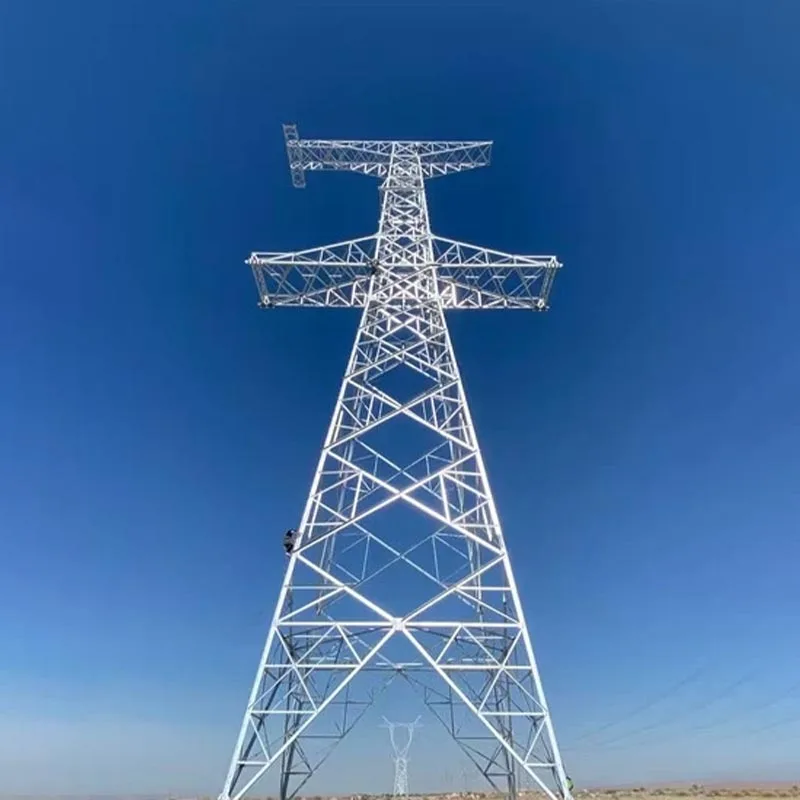

Angle Steel Phase Shifting Tower
Angle steel phase shifting towers are specialized lattice structures for high-voltage/extra-high-voltage (EHV) AC transmission lines, made of standardized angle steel via bolted assembly. They combine the mechanical stability of conventional angle steel towers with the key function of three-phase conductor transposition. To find a comprehensive solution for your project, please contact Anbang.

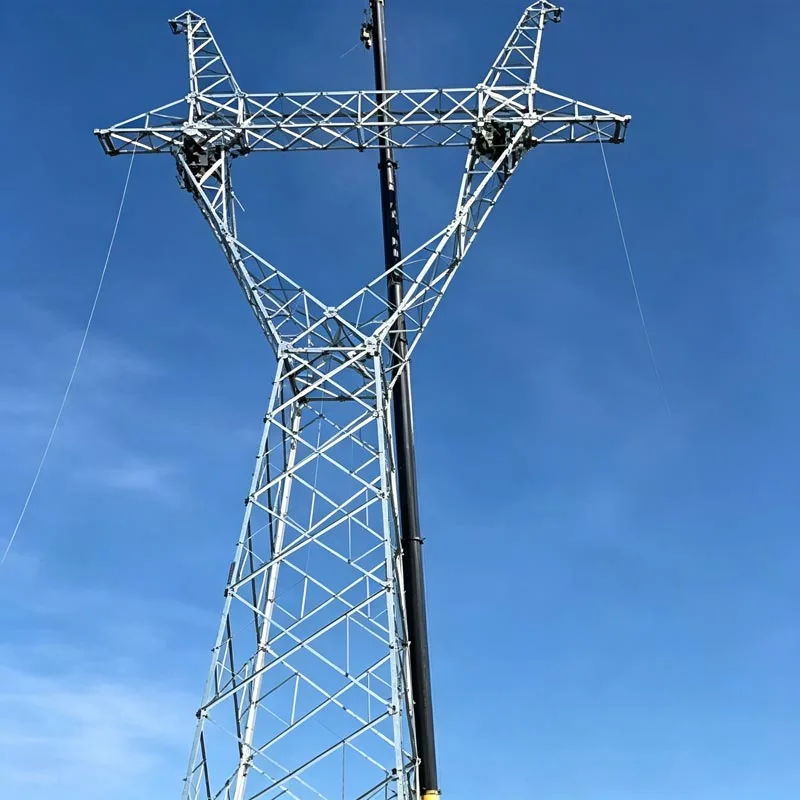

Galvanized Angle Steel Power Transmission Tower
The Galvanized angle steel power transmission towers manufactured by Qingdao Anbang factory are lattice-type steel structures widely used to support overhead power lines in electrical grids. Fabricated from hot-rolled angle steel sections and protected by hot-dip galvanization, these towers offer high mechanical strength, excellent corrosion resistance, and long service life (typically 40–50 years). Their open lattice design minimizes wind load while maximizing structural efficiency, making them suitable for various voltage levels (10 kV to over 800 kV) and terrain conditions.
As a reliable Angle Steel Transposition Tower manufacturer and supplier in China, we have our factory. If you want to buy quality and durable products, please contact us.
