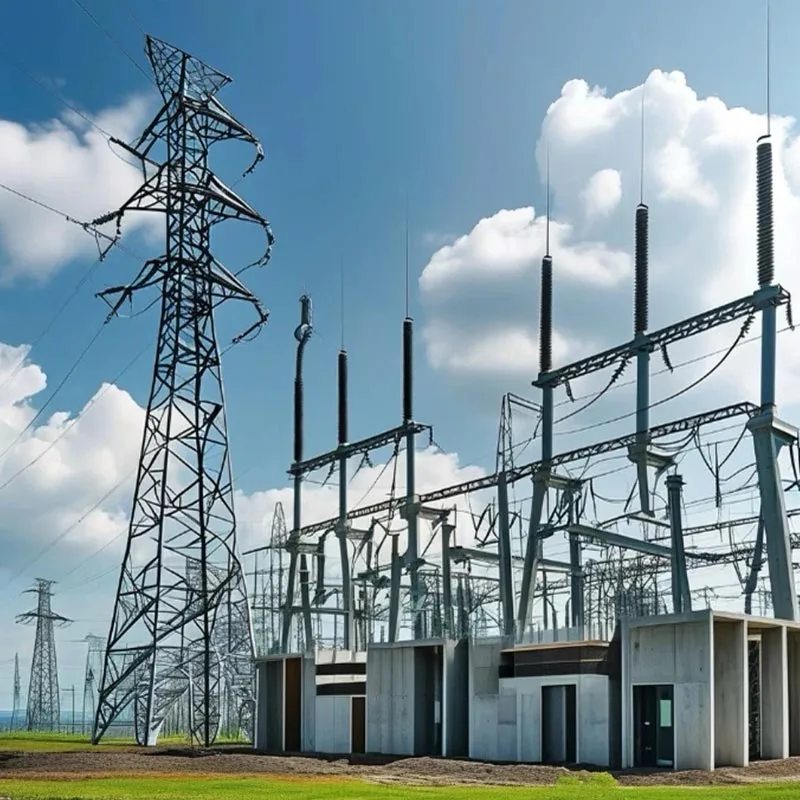

Reliable Substation Structure Factory in China

The New Energy Substation Structure, offered by Qingdao Anbang, which is a leading factory in China, is a full series of steel structure systems specifically designed for scenarios such as new energy power generation grid connection, grid booster stations, energy storage substations, and industrial distribution stations. It covers the main frameworks of substations, equipment brackets, busbar supports, lightning rods, operating platforms, cable trench supports, protective frameworks, and supporting metal components.

The products are made of high-strength steel, precisely processed and treated with hot-dip galvanization for corrosion protection. They feature high strength, quick installation, strong corrosion resistance, long service life, and compact footprint. They can operate stably over the long term in complex environments such as extreme cold, high temperatures, high humidity, coastal salt spray, desert wind and sand, and heavy corrosion, fully meeting the design standards and safety requirements of the national grid, new energy projects, and overseas projects.

As a comprehensive solution provider integrating design, manufacturing, testing, delivery, and operation and maintenance, Qingdao Anbang can provide customized substation structures according to project voltage levels, site conditions, equipment parameters, and environmental characteristics, helping projects shorten construction periods, reduce costs, and enhance safety and stability.

Core product range

1. The main structure of the substation

Applicable voltage: 35kV, 110kV, 220kV, 330kV, 500kV

Structural form: truss type, lattice structure, steel pipe type, angle steel type

Core use: support buses, jumpers, disconnect switches, circuit breakers and other core equipment

Features: strong bearing capacity, wind and earthquake resistance, good overall rigidity, and convenient on-site assembly

2. Device holder

Applicable equipment: transformers, transformers, lightning arresters, circuit breakers, capacitors, reactors, etc

Structural form: single rod type, double rod type, frame type, platform type

Features: High precision, accurate docking, adaptation to the installation size of various electrical equipment

3. Busbar structure and support structure

Applicable: hard busbar, soft busbar, pipe busbar

Features: reasonable force, small deflection, and compliant electrical safety distance

4. Lightning rod and lightning protection frame

Height: 10m–40m customized

Structure: single-tube lightning rod, lattice structure lightning rod, independent lightning rod structure

Usage: Lightning protection of the whole station, suitable for outdoor substations

5. Substation operating platform, ladder and guardrail

Applicable: main transformer platform, equipment maintenance platform, roof platform

Standard: anti-slip, anti-rust, meet safety specifications

Features: Modularity, quick installation, high safety

6. Cable trench supports, bridges and auxiliary steel structures

Material: hot-dip galvanized angle steel / channel steel / stainless steel

Usage: cable laying, pipeline support

Advantages: anti-corrosion and durable, load standard, efficient construction

7. Customized structure for new energy

Photovoltaic collection station structure

Wind power booster station structure

Energy storage power station brackets and container infrastructure frameworks

Coastal / Gobi / High altitude anti-corrosion and wind resistant custom structure

Product technical advantages

High-strength steel, sufficient safety and redundancy Q355B and Q420B high-quality structural steel, high tensile strength, deformation resistance, and overturning resistance, meet the requirements of extreme loads such as strong winds, ice and snow, and earthquakes.

CNC precision machining, installation zero rework automatic CNC cutting, drilling, bending, hole position tolerance millimeter, high degree of component matching, no need for secondary modification on site, greatly shortening the installation period.

The whole process of hot-dip galvanizing anti-corrosion, with a lifespan of more than 30 years Own hot-dip galvanizing production line, the thickness of the zinc layer far exceeds the national standard, salt spray, wind and sand, chemical corrosion resistance, suitable for coastal, Gobi, chemical plants and other highly corrosive areas.

Full voltage level coverage, strong customization ability from 35kV-500kV full coverage, can optimize the structural scheme one-to-one according to terrain, equipment, meteorology and geological conditions.

It complies with national standards, national grids, and international standards, passes national testing, meets GB, DL and international IEC related standards, and can be used for various power grid and new energy projects at home and abroad.

Applicable scenarios

Photovoltaic power stations, wind farm booster stations/aggregation stations

Grid 110kV/220kV/330kV/500kV substation

Energy storage power stations and data center supporting substations

Industrial parks, industrial and mining enterprise distribution stations

Coastal, saline-alkali land, Gobi, desert, high altitude and other harsh environment power stations

Overseas Substation EPC Projects (Africa, Middle East, Southeast Asia, etc.)

Selection suggestions

Urban / Compact station: steel pipe frame + single pole support, occupying a small and beautiful area

New energy base: angle steel truss frame, high strength, excellent cost, fast delivery

Coastal salt spray area: strengthen hot-dip galvanizing + anti-corrosion optimization

Gobi wind and sand area: wind-resistant reinforced structure

500kV and above: high-strength lattice structure main frame

Reasons for choosing Qingdao Anbang New Energy

1. Full chain manufacturing capability, controllable quality

From design, blanking, processing, galvanizing to finished product testing, there is no outsourcing link, stable quality, controllable delivery time, and avoiding supply chain risks.

2. High strength + high precision, safe and more reliable

It is made of high-strength steel + CNC precision, with high component accuracy, clear stress, and large safety redundancy, reducing the risk of deformation, overturning, and fracture, and providing more assured long-term operation.

3. Self-owned galvanizing factory, leading in the anti-corrosion industry

It has a professional hot-dip galvanizing production line, with uniform zinc layer, strong adhesion, and anti-corrosion life far exceeding that of peers, greatly reducing later maintenance costs.

4. Customized solutions to suit all scenarios

It can be designed one-to-one according to voltage, equipment, terrain and environment, and provides special structures such as tangents, corners, terminals, wind resistance, anti-corrosion, and large spans.

5. Complete authoritative certification, worry-free project

It has passed the ISO9001/ISO14001/ISO45001 system certification and has a national structural test report to meet the bidding requirements of power grid, new energy and overseas projects.

6. Fast response and efficient delivery

Provide quotations, drawings, and technical solutions 24 hours a day, with short production cycles, standardized packaging, and convenient transportation, and support urgent projects to catch up.

7.Full life cycle service guarantee

From the early plan to the on-site installation guidance, the later operation and maintenance, we provide one-stop long-term service, and truly achieve "one cooperation, whole process at ease".

8. Cost-effective, reduce comprehensive costs

The structure is reasonable, the materials are accurate, and the installation is efficient, which reduces the cost of procurement, construction and maintenance, and is significantly better than similar products.
