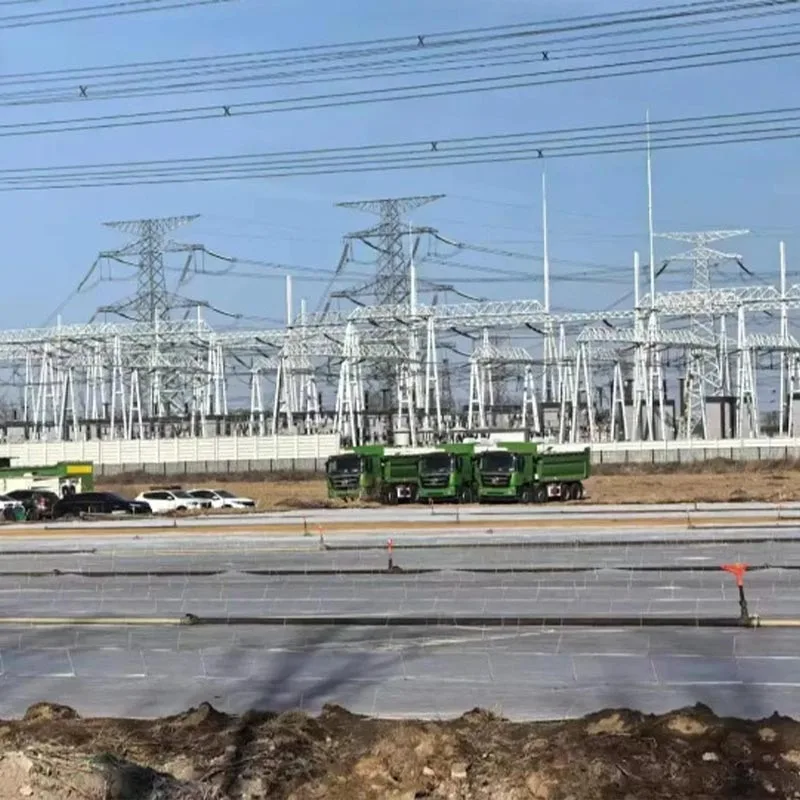

Substation Framework Structure

Qingdao Anbang New Energy's Substation Framework Structure is the company's independently developed and manufactured core load-bearing and support facility for substations, based on the needs of China's power construction and leveraging the production and processing advantages of its own factory.

It includes three main categories: reinforced concrete framework, steel structure framework, and prefabricated hybrid framework.

The substation framework strictly follows the "Intelligent Substation Design Code" and the "Seismic Design Code for Power Facilities," using high-quality Q235B and Q345B steel and C30-C50 high-strength concrete, precisely processed and rigorously tested.

It possesses core advantages such as stable structure, strong load-bearing capacity, wind and earthquake resistance, corrosion resistance, and broad adaptability.

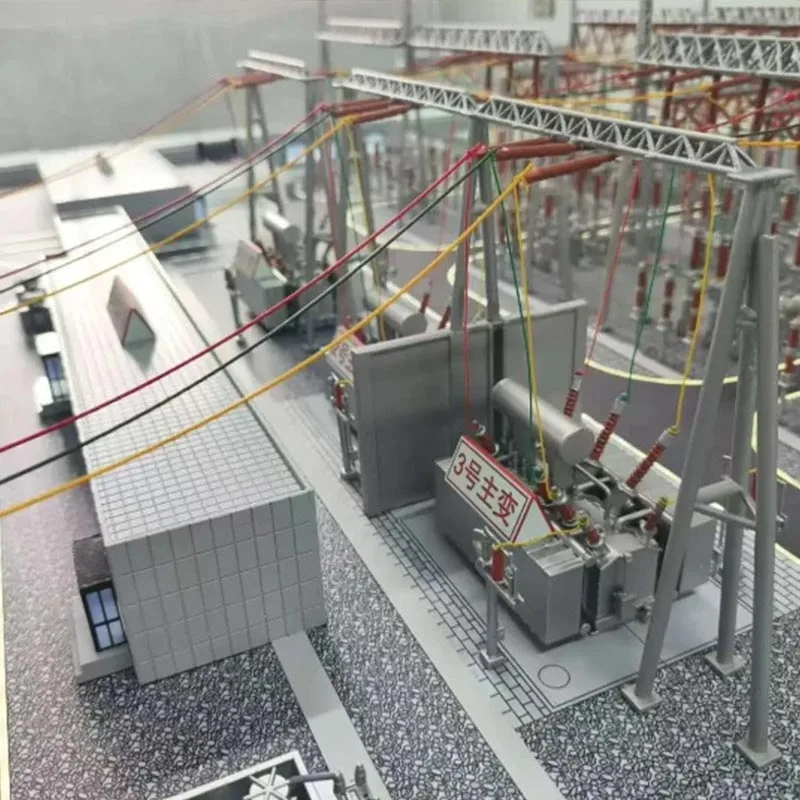

As the "skeleton" of the substation, the framework is mainly used in key areas such as the main control communication building, power distribution device building, equipment supports, and structural supports, performing critical functions in electrical equipment installation, line laying, and load transmission.

It can be adapted to substations of different voltage levels, including 110kV, 220kV, and 330kV, supports customized design, and can meet various complex site requirements such as plains, hills, and coastal areas, as well as green and intelligent construction needs.

This provides reliable structural assurance for the safe, efficient, and long-term stable operation of substations, supporting the secure transmission of electrical resources.

Parameter Specifications

Selection recommendation

Applicable scenarios of reinforced concrete substation frame structure

110kV-220kV conventional substations, substations in plain areas, main control communication buildings, distribution device buildings, and Class I-II sites with seismic fortification intensity of 7 degrees and below.

Reason for recommendation: economical cost, high stiffness, excellent fire performance, low maintenance cost, strong structural integrity, adapted to the load and space requirements of conventional equipment in substations, in line with conventional substation infrastructure standards, is one of the most widely used substation frame structure types.

Applicable scenarios of steel structure substation frame structure

220kV-330kV high-voltage substations, coastal strong salt spray areas, mountainous complex terrain substations, seismic fortification intensity of 8 degrees and above, and substations with long-span equipment layout requirements.

Reason for recommendation: excellent seismic performance, light weight, convenient construction, large span, can resist strong winds, salt spray and other harsh environments, components can be prefabricated in the factory, quickly assembled on site, adapted to the heavy load and large-span needs of high-voltage substations, and the high-intensity area is preferentially selected, in line with the concept of green and intelligent construction.

Applicable scenarios of prefabricated hybrid substation frame structure

substation projects with tight construction periods, substations in the suburbs of cities, green and low-carbon demonstration substations, and areas with high requirements for construction and environmental protection.

Reason for recommendation: Integrating the advantages of steel structure and concrete structure, high assembly rate and short construction period, it can realize the synchronous advancement of factory prefabrication and on-site foundation construction, reduce on-site wet operation, dust and construction waste, low carbon emissions, and have good bearing capacity and stability, which is suitable for the intelligent construction and efficient construction needs of modern substations.

Applicable scenarios of customized substation framework structure

substation projects with special terrain (islands, steep slopes, swamps), special voltage levels, special loads (multi-equipment integration, large span spanning), special meteorological conditions (heavy ice areas, strong typhoon areas) and landscape integration requirements.

Reason for recommendation: Qingdao Anbang New Energy's own factory can customize and adjust the material, span, floor height, anti-corrosion standards and structural form of the substation frame structure according to the engineering drawings, topographic survey reports, meteorological data and equipment parameters provided by customers, and provide one-on-one design, production, and installation guidance one-stop services to ensure that the substation frame structure is fully adapted to the actual needs of the project.

Real case

Yunnan Kunming 110 kV five-mile multi-prefabricated substation frame structure project

Provide a full set of prefabricated Substation Framework Structure for the first civil prefabricated frame structure substation in Yunnan Province, including the power distribution device building frame and equipment bracket frame, adapted to 110kV voltage level, the assembly rate is 53%, and the prefabricated components and dry steel connection technology are used to meet the requirements of green and intelligent construction.

Implementation effect: The substation frame structure factory is prefabricated, on-site hoisting and assembly, the construction period is shortened by 2 months compared with conventional projects, the machinery utilization rate reaches 100%, effectively reducing construction waste and dust emissions, structural stability and seismic performance are in line with the requirements of the specification, and effectively alleviating the pressure of regional power supply after putting into operation, which has been highly praised by the Kunming Power Supply Bureau and has become a local green substation construction demonstration project.

Zhejiang Ningbo 110 kV halfway prefabricated mixed frame structure substation project

For Zhejiang's first prefabricated ultra-high-performance concrete steel node hybrid frame structure substation, supply a full set of hybrid substation frame structure, using UHPC material and steel node connection technology, adapt to 110kV voltage level, and achieve 100% assembly of the main structure.

Implementation effect: The substation frame structure materials are saved by about 65%, carbon emissions are reduced by 52.6%, the site is realized without formwork, no support, and no moisture, the installation period of the main structure is shortened by 25 days, the waterproof, thermal insulation, and corrosion resistance performance are excellent, and the maintenance cost is greatly reduced in the later stage.

Shandong Qingdao 220 kV substation frame structure renovation project

Participated in the upgrading and renovation project of a 220 kV substation in Qingdao, provided reinforced concrete and steel structure mixed substation frame structure, replaced the old frame, renovated the main control communication building and distribution device building frame, adapted to the original equipment installation, and met the requirements of seismic fortification 7 degrees.

Implementation effect: The substation frame structure accurately matches the original equipment size, the installation is convenient, the construction process does not affect the surrounding power supply, the structural bearing capacity is increased by 30% after the transformation, the anti-corrosion and lightning protection performance is significantly optimized, and there are zero failures so far, effectively extending the service life of the substation, ensuring the stable operation of the regional power grid, and being recognized by the State Grid Qingdao Power Supply Company.
