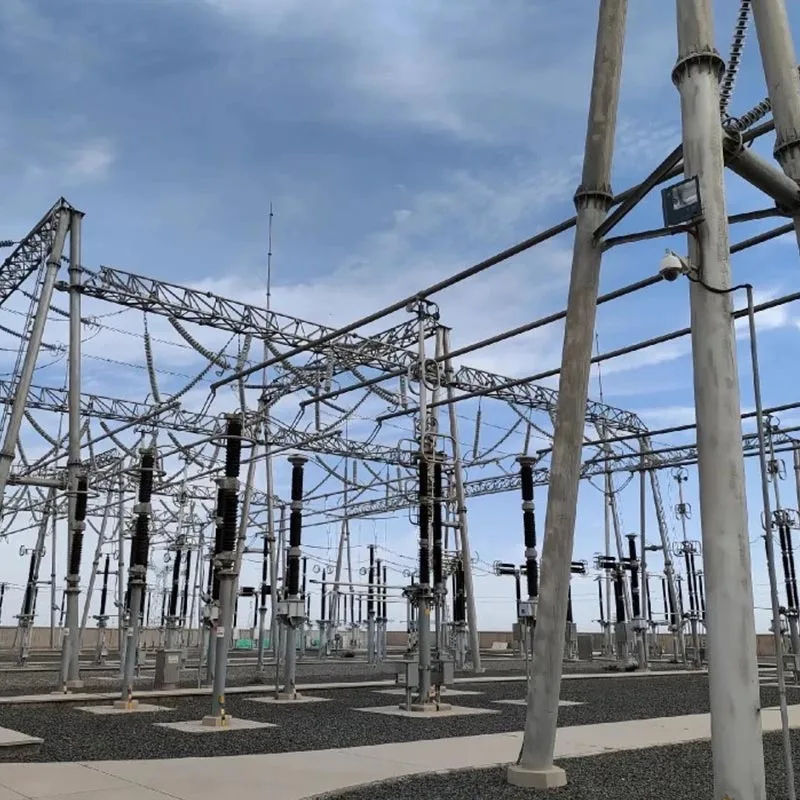

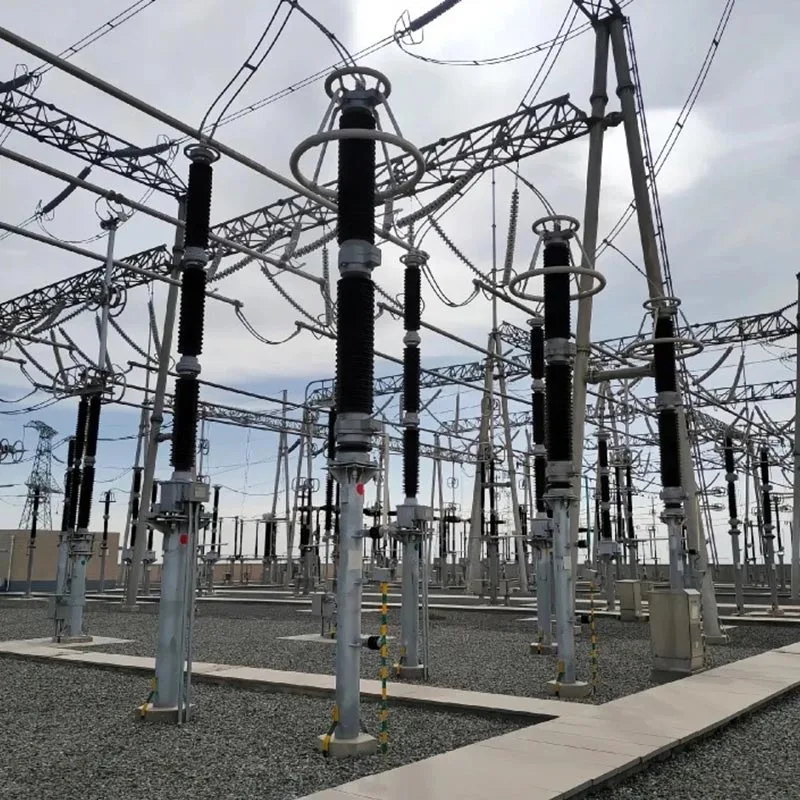

Substation Steel Structure

Qingdao Anbang New Energy's substation steel structures are carefully crafted from high-quality national standard Q235B/Q355B steel, which is specially selected for its excellent mechanical properties and structural stability to meet the strict requirements of power engineering.

This high-grade structural steel not only has outstanding tensile strength and impact resistance but also complies with all relevant national and industrial standards for substation construction, ensuring that each component can withstand long-term operational pressure.

Adopting advanced factory prefabrication and standardized modular production processes, our production team uses state-of-the-art numerical control cutting, welding and drilling equipment to process each component in a professional workshop, which not only guarantees the consistency and precision of product dimensions but also maximizes production efficiency and reduces potential errors caused by on-site processing.

Core Advantages

Material and Process Strength

High-strength national standard steel is selected, with full-process hot-dip galvanization (coating ≥85μm), offering a corrosion protection life of over 30 years; standardized factory prefabrication ensures component precision of ±1mm, with dual assurance of welding and bolted connections, wind resistance ≥ level 12, and seismic fortification over intensity 8.

Outstanding Structural Performance

The substation steel structures are lightweight yet high in strength, with strong adaptability to large spans and heavy loads. They can flexibly adopt steel tube columns, lattice steel columns, triangular truss beams, and other structures to meet different substation layout requirements.

Efficient Construction and Maintenance

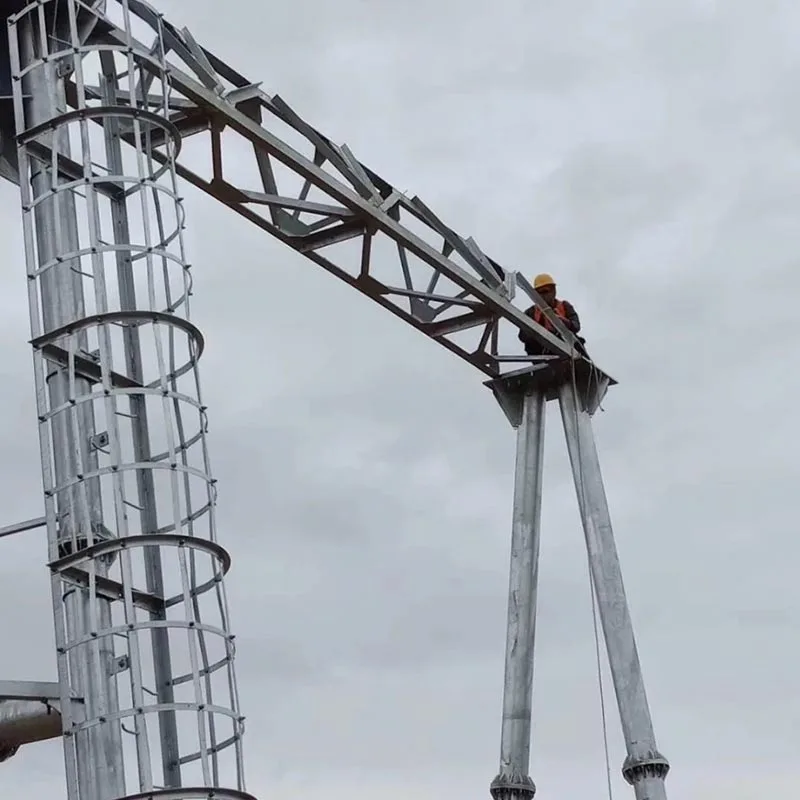

Anbang New Energy’s substation steel structures use modular design for on-site hoisting and assembly, reducing construction time by more than 50% compared to traditional concrete structures; they are detachable and recyclable, facilitating future maintenance and significantly lowering lifecycle costs.

Strong Customized Adaptability

Substation steel structures can be customized according to voltage level, site conditions, and load requirements, suitable for complex environments such as coastal high-salinity and cold areas, and compatible with auxiliary facilities such as lightning protection and ladders.

Product Operating Principle

The substation steel structures produced by Anbang New Energy rely on steel beams, steel columns, and steel trusses as the core load-bearing system.

Components are rigidly connected with high-strength bolts and welding, uniformly transferring the weight of electrical equipment, conductor tension, and external loads such as wind, snow, and earthquakes to the concrete foundation.

The triangular/quadrangular trusses and lattice structures use mechanical stability principles to disperse forces and reduce deformation.

The hot-dip galvanization layer isolates air and moisture, preventing steel corrosion and ensuring the long-term stable bearing capacity, establishing a solid physical barrier for power transmission.

Specifications Parameters

Our Services

Full-Process Customization: We provide integrated services for product design, production, and processing, offering exclusive solutions based on project parameters to meet personalized needs.

Factory Intelligence Manufacturing: With a self-owned 50,000㎡ production base, we produce over 50,000 tons of components annually, strictly adhering to domestic and international power industry standards and maintaining full-process quality control.

One-Stop Delivery: We provide transportation, on-site hoisting, installation guidance, and commissioning services, ensuring efficient project completion.

After-Sales and Maintenance Guarantee: We offer lifetime technical consultation, regular inspections, and component repair and replacement services to ensure the long-term safe operation of substation steel structures.
