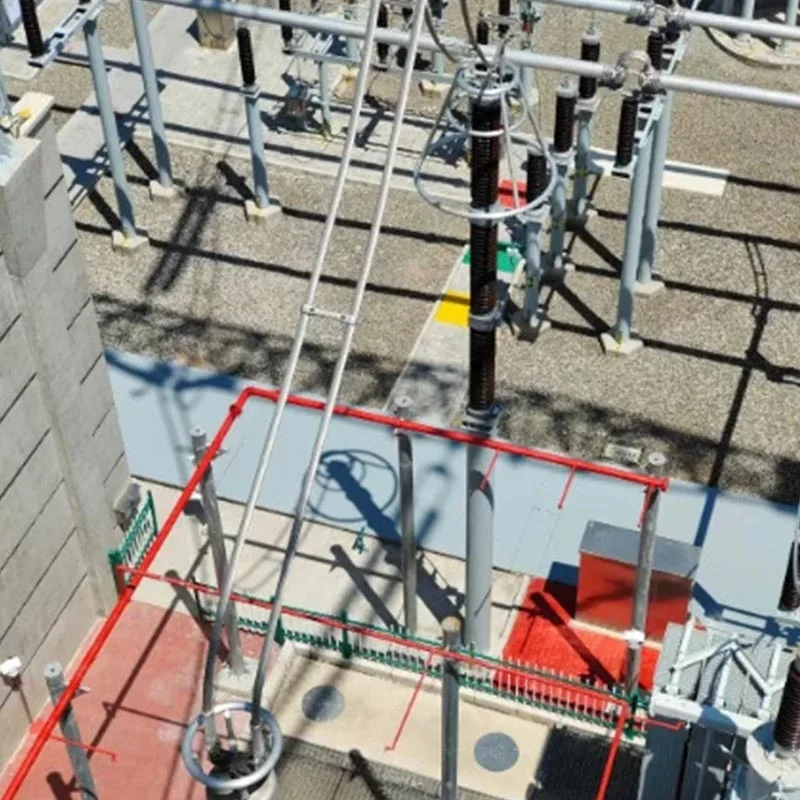

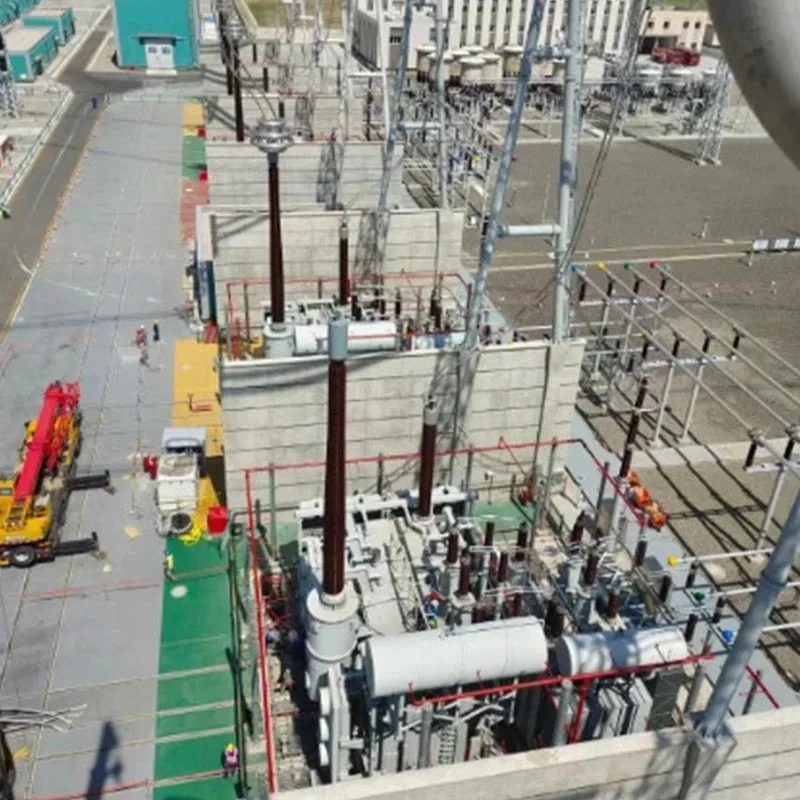

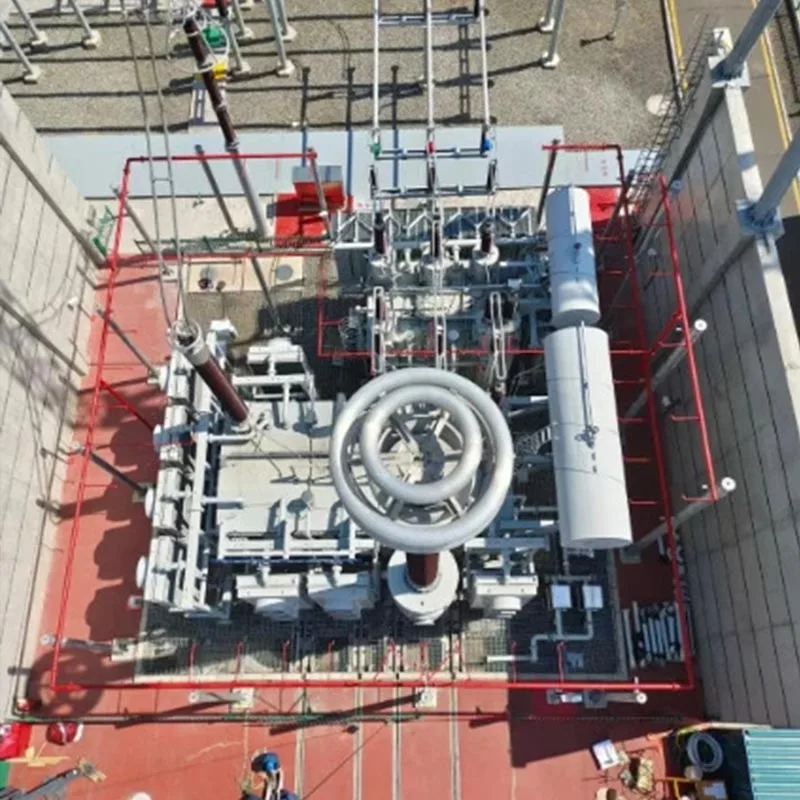

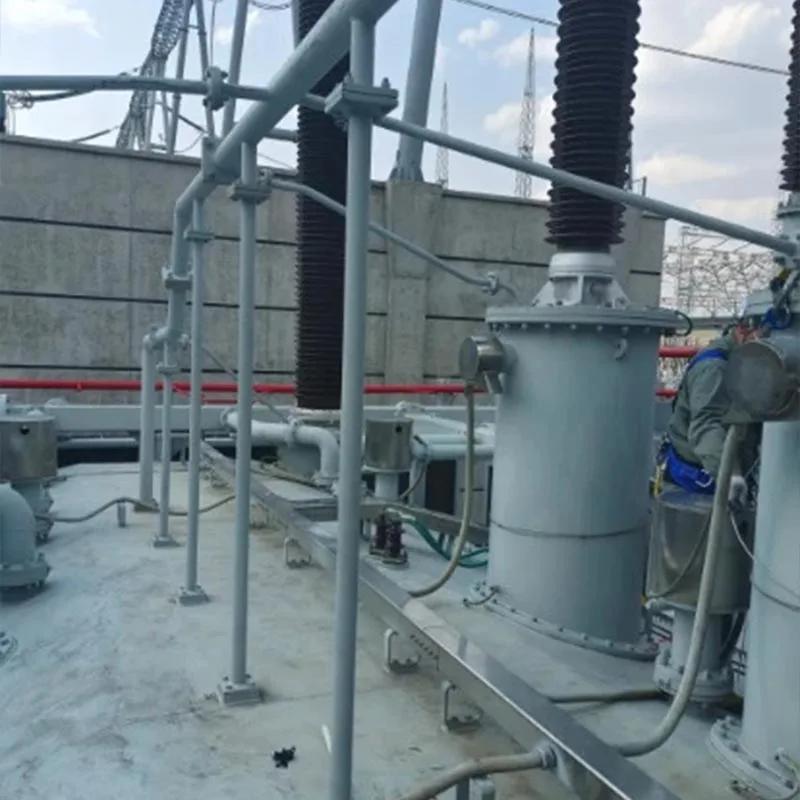

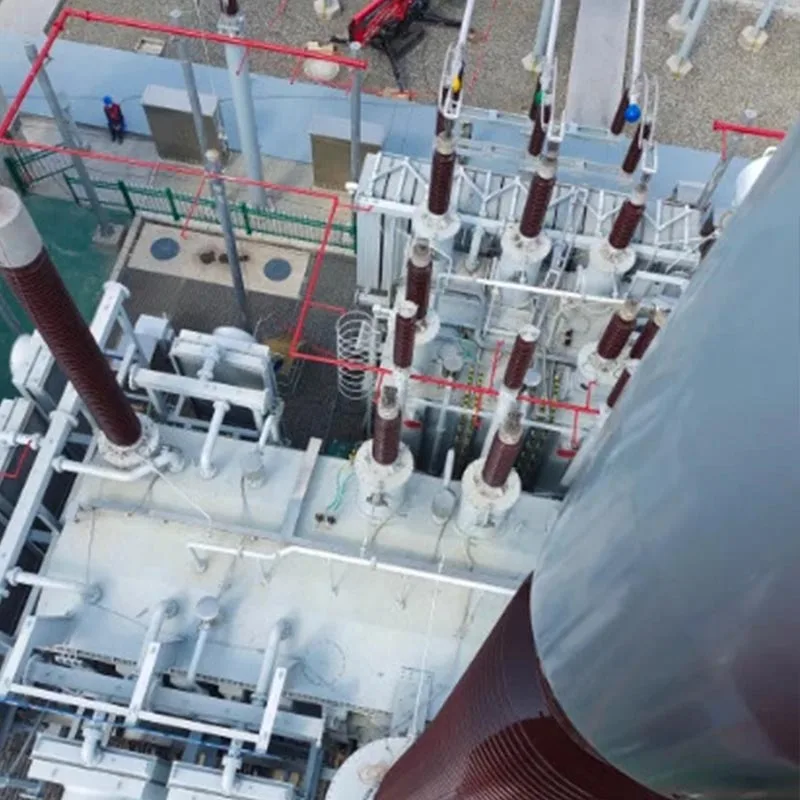

Electric Substation Structure

The Electric Substation Structures of Qingdao Anbang New Energy are core support framework systems suitable for substations of various voltage levels, covering a full range of products including portal frames, equipment supports, and busbar bridges.

The products adopt factory prefabrication and modular production modes, strictly following Chinese power industry standards, integrating high strength, high corrosion resistance, and high stability.

They provide safe and reliable load-bearing and positioning support for substation electrical equipment, fully meeting the efficient, safe, and green requirements of modern power grid construction in China.

Why Choose Anbang

Deep Professional Expertise

A veteran Chinese local manufacturer of Electric Substation Structures, focusing on the field of electrical substation structures for over 10 years, with standardized production facilities and a professional R&D team, well-versed in China’s power grid construction standards and application requirements.

Strict Quality Control

The entire process follows Chinese GB and DL industry standards. Raw materials use high-quality high-strength steel Q355B/Q420B, with hot-dip galvanizing corrosion protection meeting standards. The corrosion-resistant lifespan of electrical substation structures exceeds 30 years.

Leading Technical Strength

Independently developed modular design technology, ensuring high precision and accurate assembly of electrical substation structures, suitable for substations with voltage levels from 110kV to 750kV, with customizable production according to needs.

Full-Chain Service

Integrated services from design, production, transportation to installation and after-sales. Factory-direct supply without intermediaries, rapid response, providing comprehensive technical support for projects across China.

Rich Project Experience

Served hundreds of substation projects nationwide, with electrical substation structure products covering power grid projects in multiple provinces and cities in China, recognized for both reputation and capability.

Product Parameters

Application scenarios

Conventional substations: 110kV, 220kV, 500kV and other traditional substations are supported by the electrical substation structure, adapted to the installation of various electrical equipment.

Intelligent substation: To meet the needs of sensor integration and refined equipment layout of intelligent substations, the electrical substation structure reserves intelligent equipment installation interfaces.

Wind power/photovoltaic booster station: Suitable for the booster station scenario of new energy stations, the structure of the electrical substation has superior anti-corrosion and wind and earthquake resistance.

Industrial special substations: supporting substations in industrial fields such as factories and mines, chemical industry, metallurgy, etc., and the structure of electrical substations is resistant to pollution and has strong stability.

Power grid renovation project: upgrading of old substations, shortening the construction period of factory prefabricated electrical substation structures and quickly putting them into use.

Our services

Customized design: According to the requirements of the project's geology, climate and voltage level, the structure scheme is designed one-on-one, and professional construction drawings are issued.

Large-scale production: The whole process of production, strict quality inspection, to ensure that the structural dimensions of the electrical substation are accurate and the quality is up to standard.

Efficient logistics distribution covers the national logistics network, and electrical substation structural products are delivered to various project sites in China on time to ensure the construction progress.

Professional installation guidance dispatches a technical team to guide the installation and commissioning of Electric Substation Structures on site to ensure standardized, safe and efficient construction.

Lifelong after-sales maintenance Provide lifelong technical consultation and maintenance services, regular return visits, and solve the problem of the whole life cycle.

Real case

The 110kV substation project of Xinjiang Agricultural Power Coal Power Plant supplies a full set of electrical substation structures, including portal structures, main transformer brackets, etc., and the products are resistant to wind and sand, extreme temperature differences, and have been in operation for 3 years of stable and trouble-free, helping the integrated construction of source, grid, load and storage in Xinjiang.

The 220kV intelligent substation project in Qingdao, Shandong Province has a customized modular electrical substation structure to meet the needs of intelligent equipment integration, with a factory prefabrication rate of 100% and a shortened on-site installation cycle by 40%, which is highly recognized by State Grid Shandong Electric Power.

Jiangsu Yancheng Wind Power Booster Station Project provides a salt spray-resistant electrical substation structure, strengthens the anti-corrosion process, adapts to the coastal high-humidity and high-salt environment, and has good anti-corrosion performance for 5 years of operation, ensuring the stable transmission of new energy power.

FAQ

What is the production cycle of Anbang Electric substation structure?

Standard products are in stock in the factory, 3-7 days for delivery; Customized electrical substation structure, production and delivery will be completed 15-30 days after design confirmation.

Can the product adapt to the climatic conditions of different regions of China?

Yes. In view of the severe cold in northern China, the humid heat in the south, the coastal salt spray, the northwest wind and sand, and other environments, the structure of the electrical substation adopts the corresponding anti-corrosion, cold-resistant, and wind-resistant processes to meet the working conditions of various places.

Is the installation of electrical substation structures complicated?

Modular bolted connection design, easy installation, we provide professional installation guidance and construction plan, ordinary construction team can complete the electrical substation structure assembly.

How long is the product warranty period and how to guarantee after-sales?

The electrical substation structure has a warranty period of 2 years, and lifelong maintenance. 24-hour response within China, technicians arrive at the site within 48 hours to solve the problem.

Can you provide a full set of electrical substation structural design and construction qualifications?

We have full qualifications in the design, production and installation of steel structures of China Electric Power, and can provide a full set of qualification documents and electrical substation structure test reports.
