High Quality Angle Steel Tower Manufacturer

Qingdao Anbang is a professional manufacturer of New Energy Angle Steel Tower, which is the core steel structure product of the company for overhead transmission lines ranging from 10kV to 750kV. As the most widely used and cost-effective transmission tower type in the current market, it features an angle steel truss assembly structure as its core design, capable of stably supporting several tons of conductor and ground wire weight.

It maintains structural stability under extreme conditions such as strong winds, heavy snow, severe cold, extreme heat, heavy ice, and long spans, serving as critical infrastructure for cross-regional energy transmission, power delivery from new energy bases, and the construction of the national backbone grid.

Relying on Qingdao Anbang's full-chain solution capability from design, manufacturing, inspection to delivery, the angle steel tower not only meets conventional transmission needs but also can be customized and optimized for new energy projects, special geographical environments, and overseas projects, balancing structural strength, installation efficiency, corrosion resistance, and full lifecycle cost, providing users with safe, reliable, and long-lasting transmission support.

Product Positioning and Core Value

Qingdao Anbang New Energy Angle Steel Tower is positioned as a main high-voltage / ultra-high-voltage transmission tower, covering core scenarios such as new energy grid connection, backbone grid construction, long-distance cross-regional transmission, and transmission in harsh environments.

Its core advantages are high strength, high stability, low cost, and easy installation, helping users reduce structural deformation and tipping risks, cut maintenance and replacement costs, and fully comply with national and international transmission equipment standards, making it a preferred product for both new energy power delivery and traditional grid upgrades.

Its core value lies in the use of high-strength steel and precision manufacturing processes to ensure long-term operational safety; combining standardization and customization to meet various project requirements; proprietary hot-dip galvanizing corrosion protection system greatly enhancing service life; and full-process quality control with authoritative certification, eliminating usage risks.

Product Structure and Technical Features

1. Structural Form

The angle steel tower adopts an angle steel segment assembled truss structure, assembled by standard angle steel components connected with bolts, eliminating the need for complex on-site welding. Its lightweight design ensures both structural rigidity and ease of transportation, suitable for long-distance transport and installation on complex terrain.

2. Material Selection

Strictly selected Q355B and Q420B high-strength structural steels, possessing excellent tensile, compressive, and impact resistance, capable of withstanding composite loads in large spans, heavy ice zones, and strong wind areas, meeting the stringent requirements of 750kV ultra-high-voltage transmission. All steel materials come with national-level inspection reports, ensuring quality traceability.

3. Processing Precision

Adopts CNC automated processing equipment, with hole positions and dimensional tolerances controlled at the millimeter level. The components fit highly accurately and align precisely, requiring no secondary corrections on-site, effectively shortening construction time, reducing labor costs, and minimizing rework.

4. Anti-Corrosion Technology

The company operates its own hot-dip galvanizing plant, with zinc layer thickness far exceeding national standards. Anti-corrosion performance leads the industry, able to withstand harsh environments such as coastal salt spray, desert wind and sand, high humidity, and chemical corrosion, significantly extending tower service life and reducing full-cycle maintenance costs.

Core Advantages

Wide application: covers 10kV–750kV, suitable for full-range high to ultra-high voltage transmission needs;

Cost-effective: high material utilization, efficient manufacturing, convenient installation, with lower overall costs;

Strong environmental adaptability: can customize structures resistant to wind, ice, corrosion, and icing, suitable for various extreme conditions;

Outstanding stability: truss structure distributes load evenly, with excellent anti-tilt and anti-deformation capabilities, ensuring safe and reliable operation.

Applicable Voltage Levels and Specification Selection

Qingdao Anbang New Energy Angle Steel Towers provide a full range of standardized specifications and support non-standard customization.

Core voltage levels and selections are as follows:

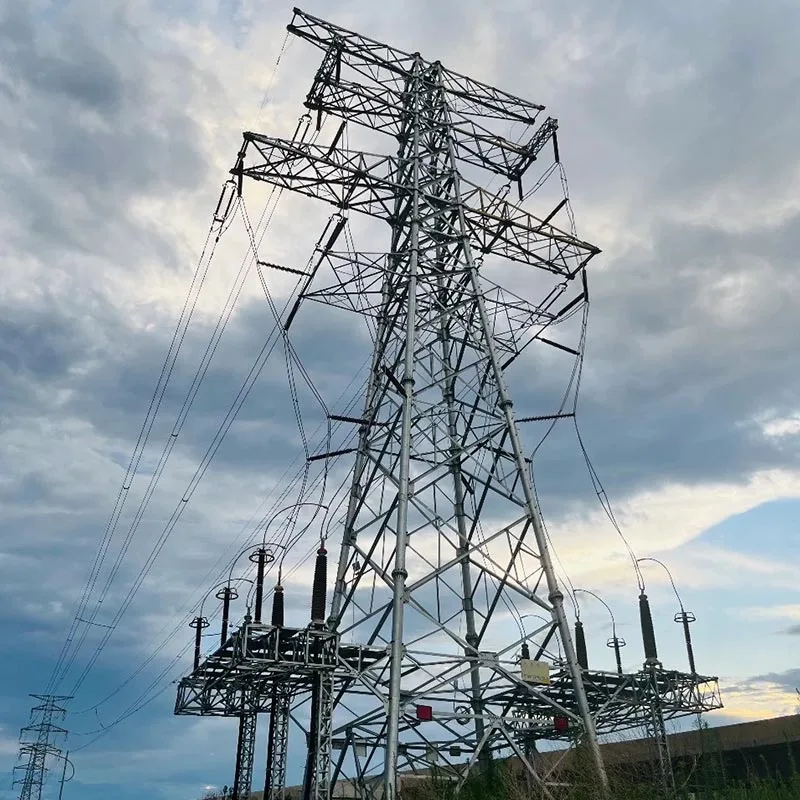

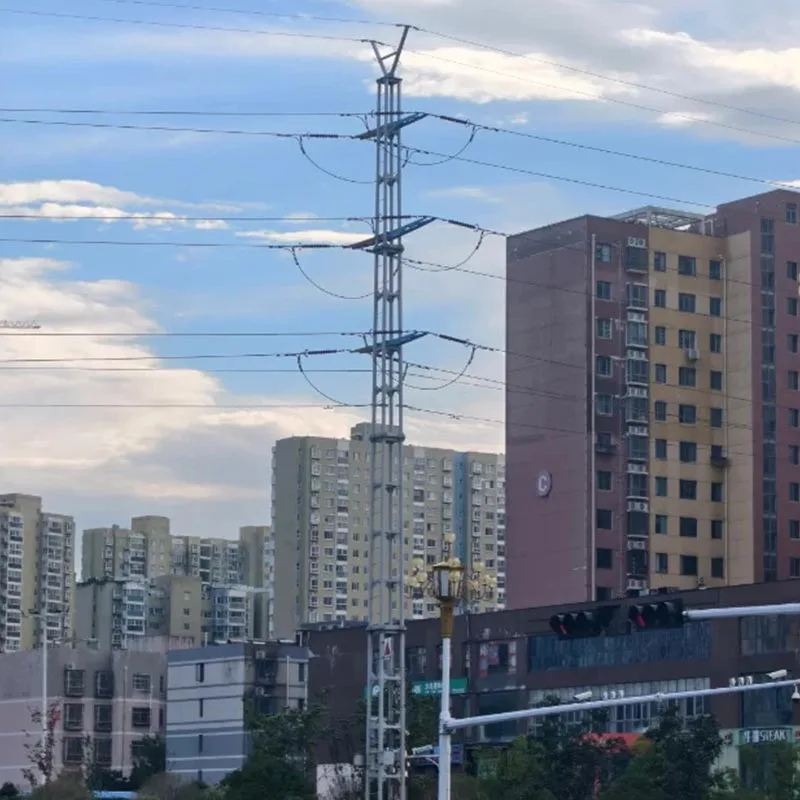

● 10kV–220kV

Suitable for urban distribution networks, regional transmission, and distributed renewable energy grid integration, using Q355B steel, featuring a universal design, allowing fast and flexible installation.

● 500kV

Suitable for the national high-voltage backbone grid, long-span transmission, and centralized new energy delivery sites, using Q420B high-strength steel, providing strong load capacity and high stability.

● 750kV

Suitable for ultra-high-voltage inter-regional transmission, heavy ice zones, high altitude, and large-span special projects. This is the top-spec product, nationally certified for structural integrity with ample safety redundancy.

Typical Application Scenarios

National Backbone Grid: the preferred choice for long-distance, high-voltage, high-load transmission, ensuring stable cross-regional energy delivery;

New Energy Bases: core equipment for wind and photovoltaic power delivery projects, resistant to sand and corrosion, ensuring rapid delivery;

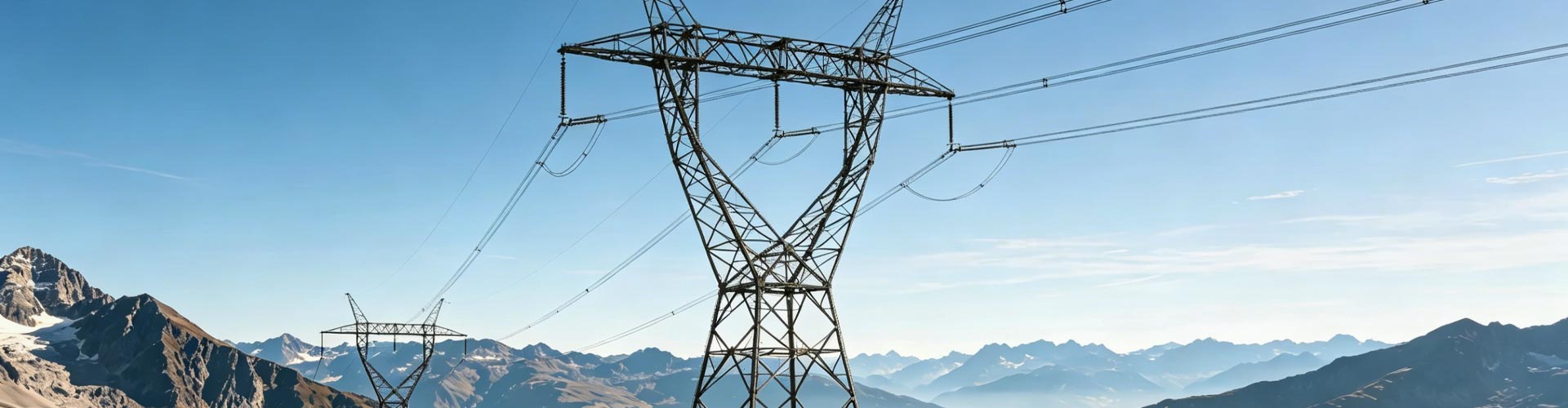

Heavy Ice Zones / Large-Span Projects: 750kV high-strength angle steel towers are adapted for extremely cold, heavy ice, and large-span environments;

Overseas Transmission Projects: optimized for high-temperature, dusty, sandy environments in Africa and the Middle East, providing customized solutions and fast service;

Grid Upgrades and Renovations: replacing outdated towers, improving line safety levels, and reducing operation and maintenance costs.

Quality Assurance and Authoritative Certification

Qingdao Anbang has established a full-process quality control system, and its angle steel tower products have obtained multiple authoritative certifications:

System Certification: ISO9001 Quality Management System, ISO14001 Environmental Management System, ISO45001 Occupational Health and Safety Management System, Energy Management System Certification;

Product Certification: National structural inspection reports for 750kV, 500kV, and 220kV voltage levels, with performance meeting standards;

Process Assurance: Strict control at each step from steel procurement, CNC processing, hot-dip galvanizing, to finished product inspection to ensure product consistency and reliability.

Services and Solutions

As a comprehensive solution provider, Qingdao Anbang offers full-cycle services for angle steel tower users:

Customized Design: One-on-one optimization of structural schemes based on project voltage, terrain, meteorology, and load requirements;

Rapid Response: 24-hour provision of quotations, drawing verification, and technical consultation;

Full-Process Delivery: One-stop service covering design, manufacturing, packaging, transportation, and on-site guidance;

Long-Term Assurance: Provision of after-sales technical support, operation and maintenance recommendations, and quality assurance to reduce user risks.

Qingdao Anbang New Energy Angle Steel Towers leverage mature structures, high-strength materials, precise manufacturing, long-lasting corrosion resistance, and full-scenario adaptability as core competitive advantages. They are the ideal choice for 10kV–750kV transmission lines.

The products are widely used in domestic main power grids, new energy bases, special environment projects, and overseas projects. With stable quality, excellent service, and high cost performance, they have become a trusted transmission tower partner for users.
