110kV Transmission Line Angle Steel Tower

Qingdao Anbang New Energy 110kV Transmission Line Angle Steel Tower is the core support steel structure designed for 110kV voltage level transmission network. The product adopts high-quality angle steel components and truss structure.

After precision processing, hot-dip galvanized anti-corrosion treatment, has the core advantages of structural stability, excellent strength, wind and earthquake resistance, weather resistance and corrosion resistance, convenient installation, etc., can efficiently support high-voltage conductors and lightning protection lines, ensure the long-term safe, stable and efficient operation, widely adapt to various terrains and complex meteorological environments, and is the preferred tower type for urban and rural power grid construction and energy transmission backbone projects.

Why Anbang

Factory strength

Anbang New Energy is rooted in Qingdao, with standardized and large-scale factories, equipped with advanced CNC cutting, automatic welding, galvanizing production lines.

The whole process follows national standards and industry norms, and the annual production capacity of 110kV Transmission Line Angle Steel Towers is sufficient, and the quality is stable and controllable.

Professional and reliable

More than ten years of experience in power steel structure research and development, joint universities to carry out technical research, the design is accurate and structural optimization, through authoritative load testing and quality certification, to meet the needs of various complex working conditions.

Strict material selection

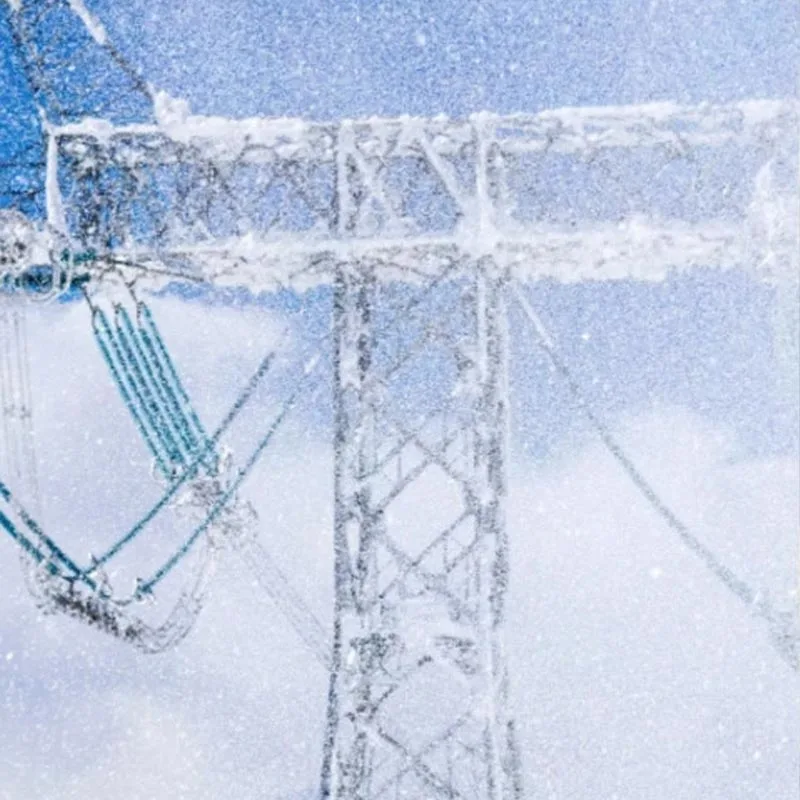

Selected Q235B and Q355B high-quality angle steel and high-strength bolts, the material mechanical properties meet the standard, the overall strength and toughness of the 110 kV transmission line angle steel tower are high, and the ability to resist natural disasters such as wind, ice, and earthquake is outstanding.

Full-chain service

From the design, production, and testing of angle steel towers of 110 kV transmission lines, to transportation, installation, and after-sales maintenance, we provide one-stop full life cycle services, with efficient response and guarantee in place.

Project verification

The products cover the power grid projects of many provinces and cities across the country, and the angle steel tower of the 110 kV transmission line has undergone long-term operation test, with zero safety accidents, and has been highly recognized by the State Grid and local power companies.

Product Parameters

Application scenarios

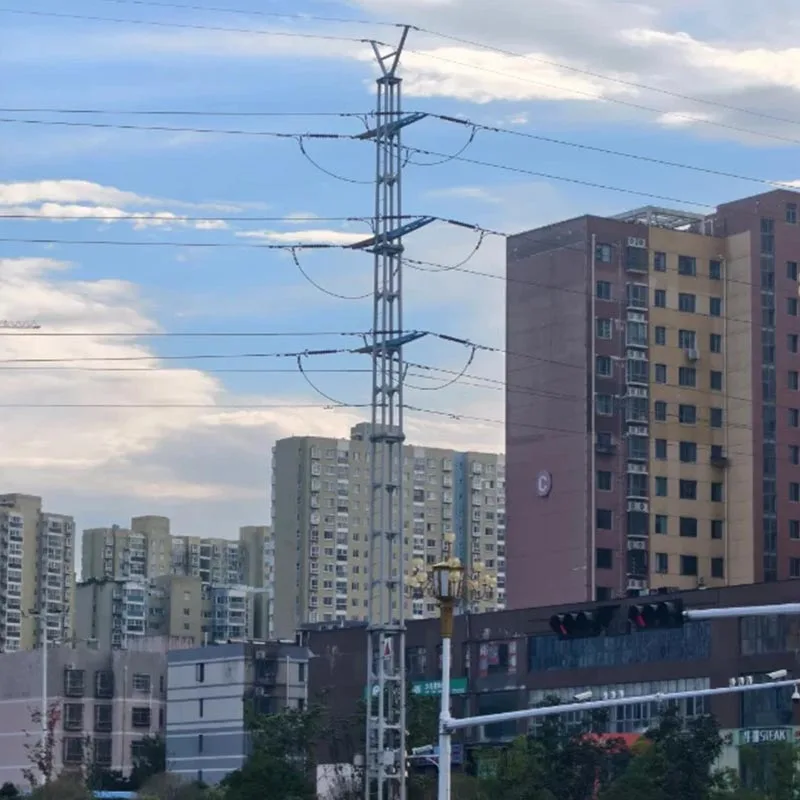

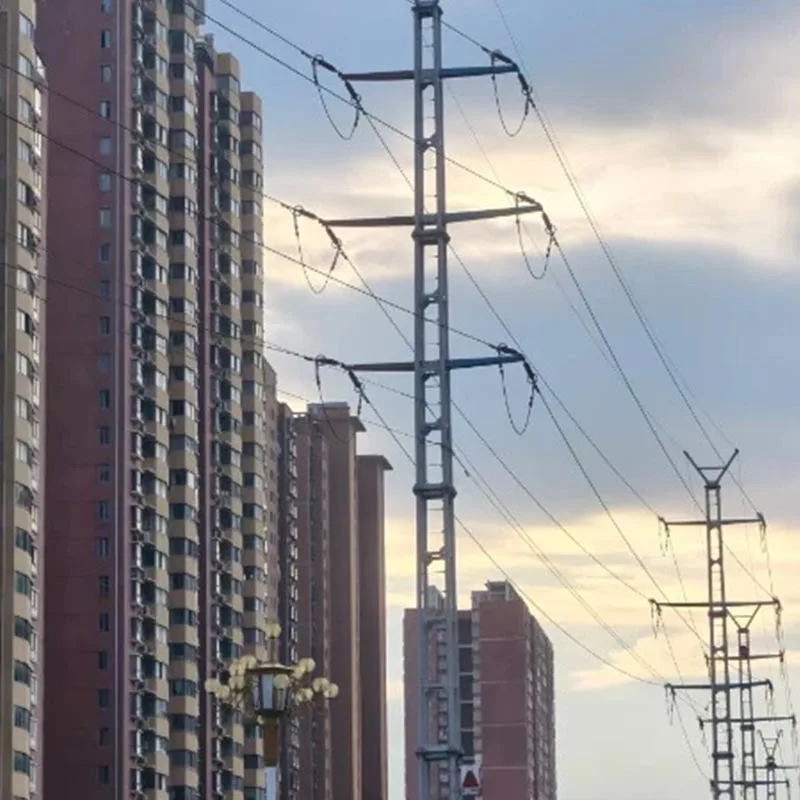

Urban backbone power grid: The construction of the city's 110 kV transmission and transformation network supports the high-voltage power transmission in urban areas and development zones, and the angle steel tower of the 110 kV transmission line adapts to the limited space of the city and has a flexible layout.

Rural power grid upgrade: power grid transformation in rural and remote areas, 110kV Transmission Line Angle Steel Towers adapt to complex terrain such as mountains, hills, and farmland to ensure stable rural power supply.

Energy base delivery: 110 kV collection lines for wind power, photovoltaic and other new energy bases, and angle steel towers for 110 kV transmission lines carry large-capacity electrical energy delivery, adapting to harsh environments such as Gobi and grasslands.

Power supply in industrial parks: 110 kV transmission lines dedicated to industrial parks and economic development zones, and angle steel towers for 110 kV transmission lines meet the needs of intensive industrial load and high power supply reliability.

Cross-regional transmission projects: inter-provincial and inter-regional 110 kV connection lines, 110 kV transmission line angle steel towers span rivers, highways, and railways to ensure long-distance transmission safety.

Our services

Customized design: According to the topography, meteorology, and load requirements of the project, the 110 kV transmission line angle steel tower is exclusively designed, and accurate construction drawings and technical plans are issued.

Standardized production: The whole process of the factory is quality control, and each process is strictly tested to ensure that the dimensions of the angle steel tower components are accurate and the quality is up to standard.

Efficient logistics and distribution: The national logistics network covers the tower components to the project site safely on time to ensure the construction progress.

Professional installation guidance: Dispatch technical engineers to guide the assembly, hoisting, and commissioning of angle steel towers of 110 kV transmission lines on site to ensure standardized installation and stable structure.

After-sales maintenance support: Provide lifelong technical consultation, regular return visits and inspections, and quickly respond to fault repair and component replacement needs.

Real cases

Case 1: The 110kV transmission line project of the Sixth Agricultural Power Division in Xinjiang supplies 86 angle steel towers, covering the Gobi and wind and sand areas, and the products have excellent wind and weather resistance, and have been in operation for 3 years and have been stable to ensure the power transmission of the source, grid, load and storage integration project.

Case 2: The 110kV urban and rural power grid renovation project in Jiaozhou, Qingdao, Shandong Province provides 62 angle steel towers, which are suitable for mixed terrain in urban and rural areas, with convenient installation and a shortened construction period by 30%, helping Jiaozhou power grid upgrade and improving power supply reliability to 99.98%.

Case 3: Hebei Zhangjiakou Wind Power 110kV Gathering Line Project Customized 110 kV Transmission Line Angle Steel Towers 78 bases to adapt to high cold, strong winds and icy environments, anti-corrosion and structural performance up to standard, and support the stable collection and transmission of power energy in millions of kilowatt wind power bases.
