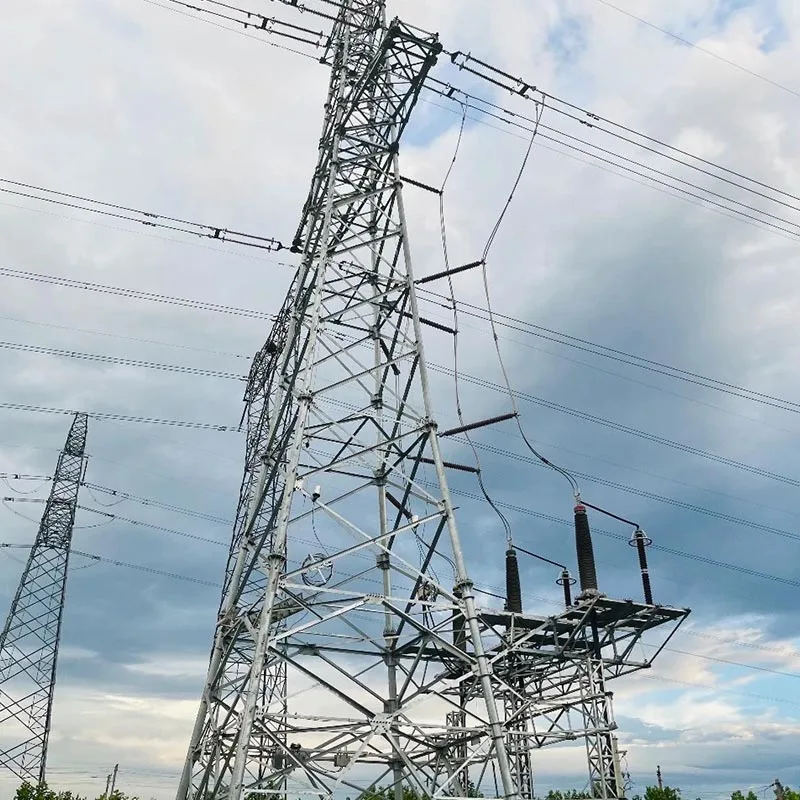

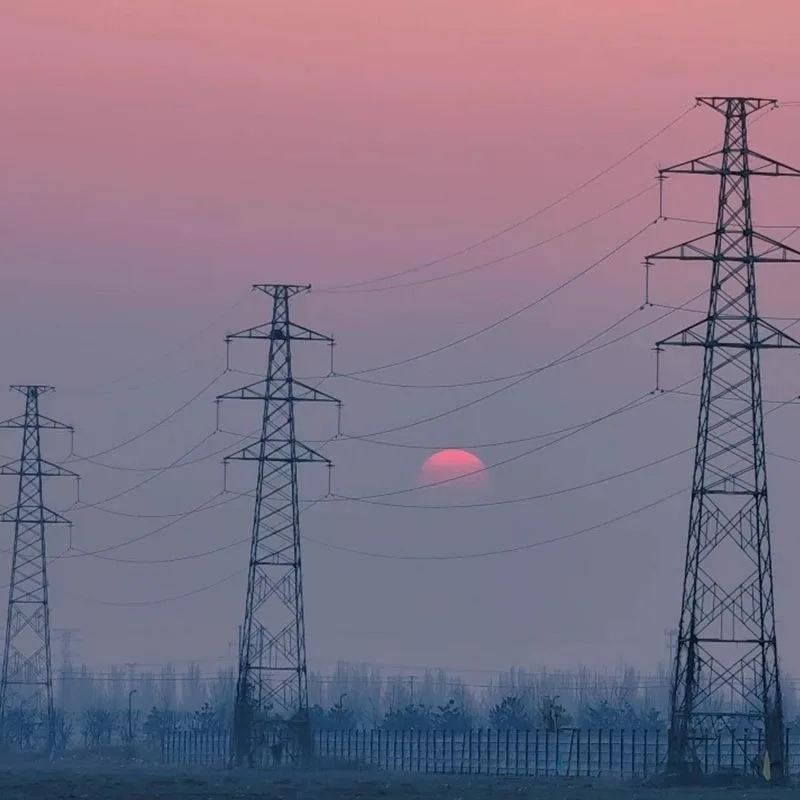

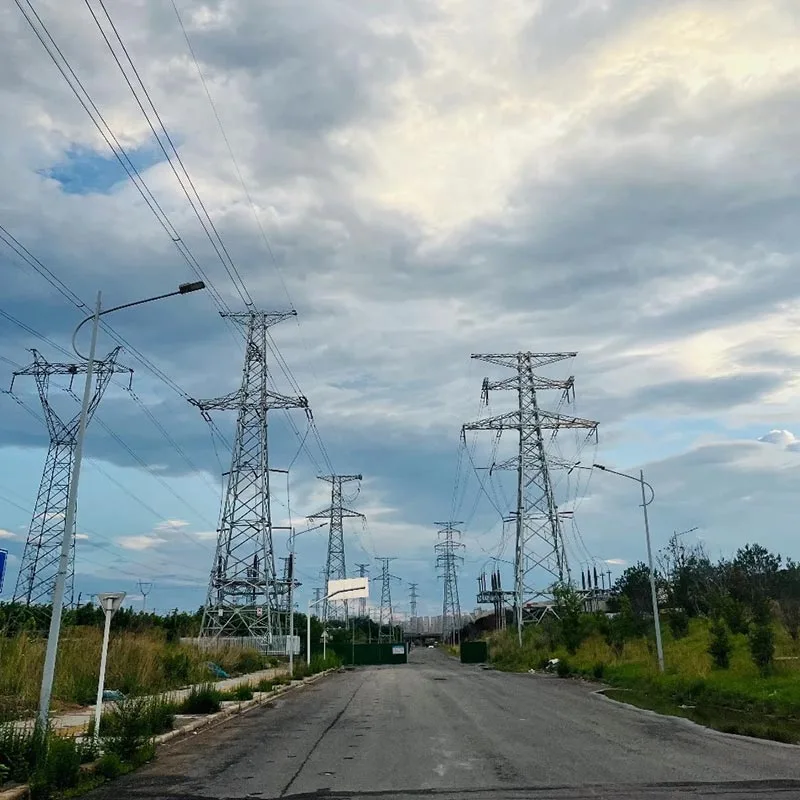

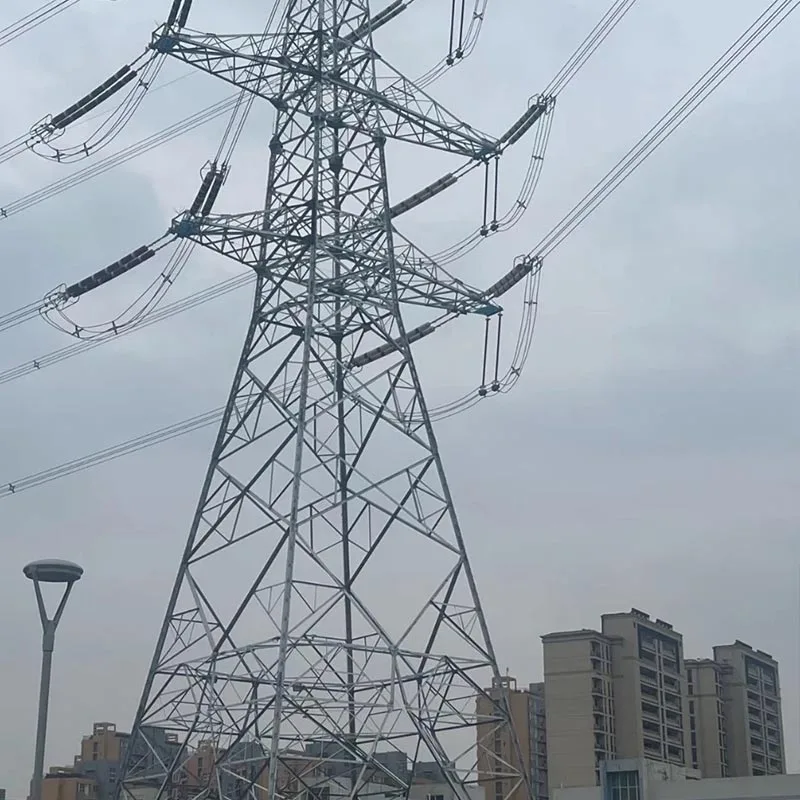

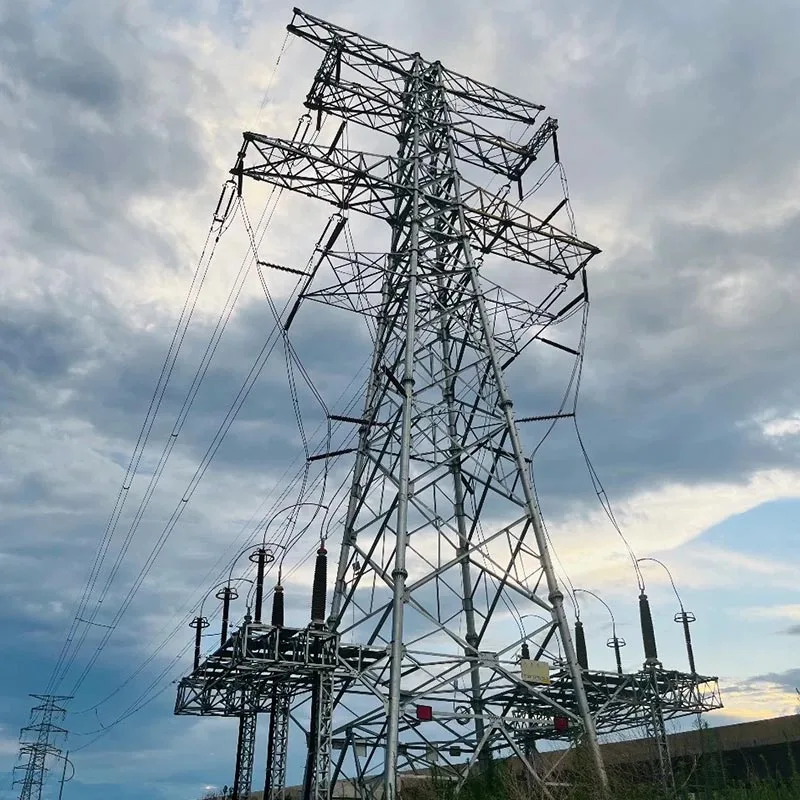

220kV Transmission Line Angle Steel Tower

The 220kV Transmission Line Angle Steel Towers of Qingdao Anbang New Energy are manufactured with the support of Qingdao Jiaozhou Modern Chemical Plant. They use high-strength angle steels such as Q355B and Q420, with a lattice bolt connection structure.

Designed and produced strictly in accordance with national and international standards, they combine high strength, high corrosion resistance, easy installation, and strong adaptability, providing stable support for 220 kV high-voltage transmission lines.

They are widely used in plains, mountainous areas, coastal regions, and various other terrains, contributing to the construction of new power systems in different countries.

Core Advantages

Maximum structural strength, outstanding disaster resistance: 220kV Transmission Line Angle Steel Tower designed with triangular/quadrilateral lattice structures, main material thickness ≥8mm, seismic resistance up to level VIII, capable of withstanding 12-level gale, 50mm ice coating, and heavy rainfall. It operates stably in coastal typhoon areas and mountainous wind-prone regions, with uniform load distribution and industry-leading anti-overturning performance.

Factory smart manufacturing with precision, quality controlled throughout the process: Qingdao Jiaozhou owns its production base, with CNC cutting, intelligent punching, and fully automated hot-dip galvanizing process, equipped with patented reinforcement, welding, and forming devices, component accuracy ±1mm, and 100% of the products pass mechanical and corrosion resistance tests before leaving the factory.

Corrosion-resistant and durable, worry-free throughout the lifespan: The tower uses a hot-dip galvanized double-layer anti-corrosion process, with a zinc layer thickness of ≥85μm, resistant to salt spray and acids and alkalis, with a service life of over 30 years in coastal humid environments, requiring no frequent maintenance, reducing total lifecycle costs.

Easy and efficient installation, suitable for complex scenarios: modular bolt connections, no need for large equipment, quick on-site assembly; tower customized design, adaptable to different terrains and weather conditions, reducing construction period by more than 30%.

Intelligent supporting upgrades, efficient and precise operation and maintenance: Optional tilt angle, wind speed, icing monitoring, and video terminals, with data accessed in real time by power grid dispatch, achieving round-the-clock status awareness and fault early warning, improving operation and maintenance efficiency by over 30%.

Product Details

Core Material: The tower uses Q355B/Q420 high-strength hot-rolled equal angle steel, yield strength ≥355MPa, mechanical properties meet standards.

Structural Form: 220kV Transmission Line Angle Steel Tower is lattice self-supporting tower, including cup-shaped, dry character-shaped, cat head-shaped, compact types, height 25–60m, voltage level 220kV.

Connection Process: Grade 8.8 high-strength bolt connection, no on-site welding, high assembly precision, strong stability.

Anti-corrosion Treatment: Fully automatic hot-dip galvanizing, uniform and dense zinc layer, in compliance with GB/T 13912 and other international standards.

Foundation Compatibility: Equipped with stepped foundations, cast-in-place piles, rock anchor foundations, suitable for various geological conditions.

Patented Features: Holds multiple patents including steel component reinforcement, tower base welding fixtures, and forming correction, enhancing structural stability and processing accuracy.

Product Application Selection

Plains and Open Areas: Prefer cup-shaped or vertical-type towers, with large crossarm spans and orderly conductor arrangement, suitable for long-distance, high-capacity transmission lines.

Mountainous and Hilly Areas: Choose owl-shaped or compact towers, with small footprints, excellent wind and ice resistance, adapted to complex terrain and narrow passages.

Coastal Typhoon / Salt Spray Areas: Custom reinforced anti-corrosion towers, thickened zinc coating, high-strength main materials, resist typhoons and salt spray corrosion, ensuring the safety of coastal power grids.

New Energy Grid Connection Lines: Suitable for outgoing lines from wind power and photovoltaic bases, supporting large cross-section conductors, meeting the high-power, long-distance transmission needs of new energy.

Urban Suburban Transmission: Compact tower type, reducing land use, balancing electrical safety and urban landscape adaptation.

Reasons to Choose Anbang

Local Manufacturing Strength: Own factory in Jiaozhou, Qingdao, with a registered capital of 50 million yuan, deeply engaged in power transmission towers for over a decade, stable production capacity, timely delivery, and services for national grid projects.

Technical Patent Protection: Multiple core patents for transmission towers, optimized structures and processes, product performance exceeding industry standards, and higher safety and reliability.

Full-Process Service Guarantee: From design, production, and transportation to installation guidance and after-sales operation and maintenance, a one-stop solution with quick response and worry-free after-sales.

National Standard Quality Certification: Strict adherence to national and international grid and industry standards, triple checks including raw material traceability, process quality inspection, and finished product testing, with a qualified report issued for each tower.

New Energy Strategic Collaboration: Focused on supporting new energy power, products compatible with new power systems, aiding the "dual carbon" goals and the upgrade of national and international grid construction.
