Angle Steel Power Transmission Transposition Tower

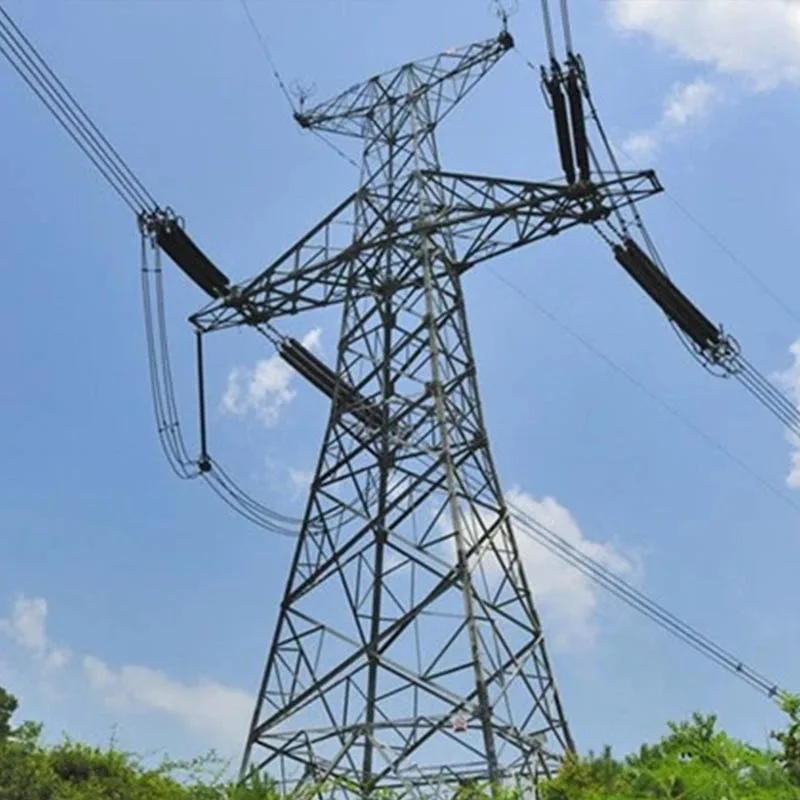

In long-distance power transmission, the asymmetry of three-phase conductor parameters will lead to unbalanced voltage, increased energy loss and electromagnetic interference to adjacent communication lines. This Angle Steel Power Transmission Transposition Tower solves these problems by changing the relative positions of A, B and C phase conductors, thereby balancing the inductance and capacitance of the line, reducing interference and improving the stability and efficiency of power grid operation.

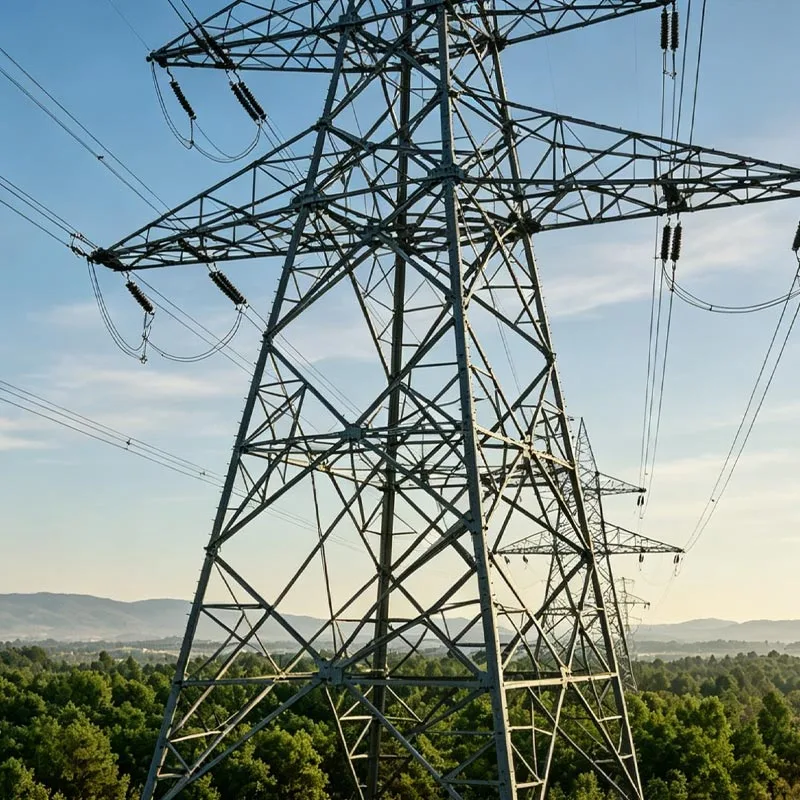

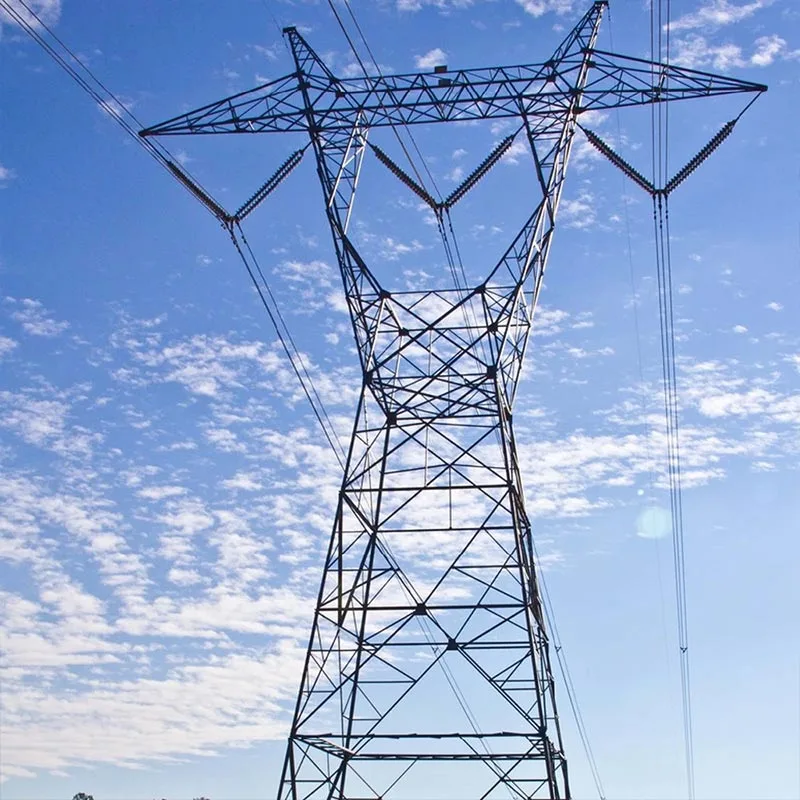

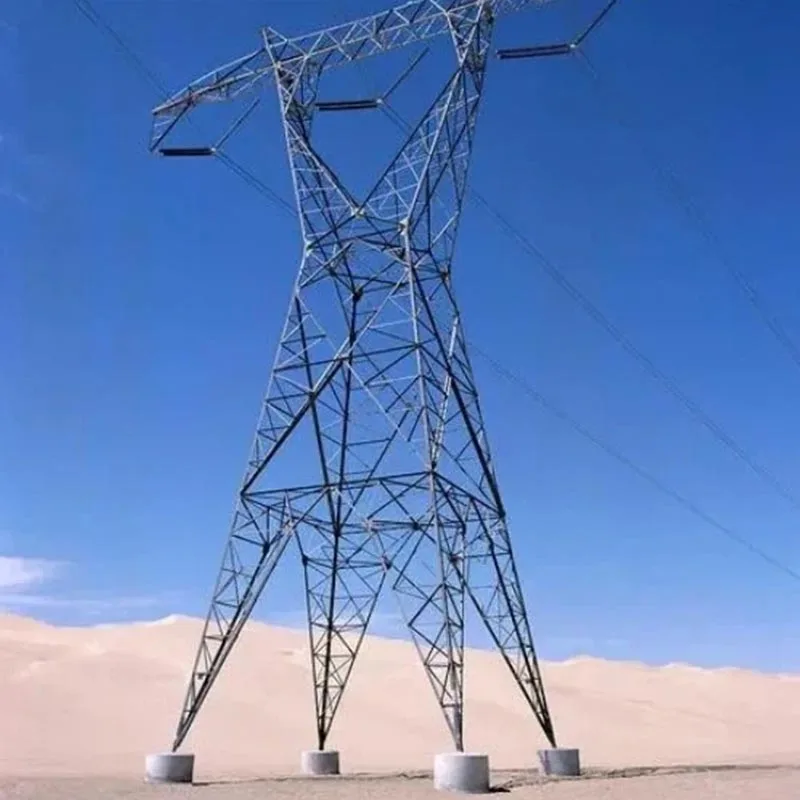

The tower is composed of tower legs, tower body, cross arms and other parts. The tower legs are four angle steel columns to provide stable support; the tower body is a lattice truss with triangular stability system; the multi-layer cross arms provide sufficient space for conductor transposition. It adopts high-strength low-carbon alloy steel such as Q235B and Q345B, and is protected by hot-dip galvanizing with a zinc layer of not less than 85μm, ensuring a service life of more than 30 years outdoors.

Suitable for 220kV and above power lines, it is usually installed 1-2 times every 80-100km. With the advantages of strong mechanical performance, low cost, convenient installation and long service life, it is an indispensable key equipment in modern power transmission projects.

Core Advantages

1. Excellent Mechanical Performance

Adopts triangular truss structure, with strong stability, capable of resisting wind (≥30m/s), ice and earthquake (8 degrees), adapting to various harsh outdoor environments.

2. High Economy

Angle steel is easy to process, low in production and transportation costs; full bolt assembly enables convenient on-site installation and later maintenance, reducing construction and maintenance costs.

3. Strong Versatility

High standardization degree, easy to design, produce and inspect, suitable for 220kV and above high-voltage/ultra-high-voltage power lines.

4. Long Service Life

Hot-dip galvanizing anti-corrosion treatment (zinc layer ≥85μm) effectively prevents steel corrosion, with outdoor service life of more than 30 years.

Key Points

Core Function

Realize the phase transposition of three-phase conductors, balance line impedance, reduce electromagnetic interference to adjacent communication lines, and ensure the balance and stability of the power grid.

Structural Key

Lattice truss structure (composed of tower legs, tower body and multi-layer cross arms); full bolt connection, which is the key to convenient assembly and maintenance.

Material Key

High-strength low-carbon alloy steel (Q235B, Q345B, Q420B, etc.) + hot-dip galvanizing anti-corrosion, ensuring structural strength and durability.

Application Key

Suitable for long-distance power transmission lines (installed 1-2 times every 80-100km), mainly used in 220kV and above power grid projects.

Technical Specification

Competitive Advantages

Integrated Quality & Cost-Efficiency

Unlike competitors who often sacrifice quality for cost or overcharge for standard quality, we achieve the perfect balance: strict raw material inspection and full-process quality monitoring (99.8% compliance rate) ensure the tower’s durability and safety, while direct cooperation with steel mills and optimized structural design reduce intermediate costs, helping clients save 8-12% on material expenses.

Clients get high-quality, long-lasting (≥30 years service life) transposition towers without paying a premium, which is the core reason they choose us over others.

Customization & Efficient Service

Most competitors only provide standardized products, which cannot adapt to diverse project needs (different voltage levels, terrains, and environmental conditions). Our professional engineering team offers tailor-made design solutions, fully matching clients’ specific requirements.

Meanwhile, our large-scale production base enables delivery 7-15 days faster than the industry average, and we provide on-site installation guidance and 24-hour emergency response—solving clients’ worries about project progress and post-installation maintenance, which competitors rarely offer comprehensively.

Anbang service

Shipping Service: We offer global shipping with reliable logistics partners, providing door-to-door delivery, sea freight, air freight or land transportation options based on clients’ location and project urgency. We take full responsibility for packaging (moisture-proof, anti-collision packaging) to avoid damage during transportation, and provide real-time logistics tracking to keep clients informed of the goods’ status at all times.

Branding Service: We support customized branding according to clients’ requirements, including laser engraving or printing clients’ logos, company names or project numbers on the tower components, helping clients enhance brand exposure and project recognition, which most competitors do not provide as a standard service.

Sample Service: We provide free small-size samples of angle steel and tower components for clients to test quality, material and craftsmanship before formal order. Clients can verify the product performance in advance, eliminating concerns about product consistency and quality, which is a key service to win clients’ trust.

Testing Report Service: We issue authoritative third-party testing reports for each batch of products, covering material composition, mechanical performance (compression, bending, stability), galvanizing thickness and corrosion resistance. The reports comply with IEC, GB, AS and other international standards, providing clients with professional quality certification for project acceptance and supervision.

Warranty Service: We provide a 5-year free warranty period for all our angle steel power transmission transposition towers. During the warranty period, we offer free maintenance consultation, replacement of damaged components (caused by quality issues, not man-made damage) and 24-hour emergency response. After the warranty period, we still provide long-term maintenance guidance and cost-effective component supply, ensuring the long-term stable operation of the towers and solving clients’ post-purchase worries

FAQs

Q1: What voltage levels are your angle steel power transmission transposition towers suitable for?

A: Our towers are widely applicable to 35kV ~ 500kV high-voltage and ultra-high-voltage transmission lines, and can be customized to match specific voltage requirements of your project.

Q2: How long does it take to deliver the products after placing an order?

A: The delivery time depends on the order quantity and customization requirements. Generally, standard products can be delivered within 15-25 days, while customized products take 20-35 days—7-15 days faster than the industry average.

Q3: Are the samples really free? Is there any additional cost?

A: Yes, we provide free small-size samples (angle steel and tower components) for quality inspection. Clients only need to bear the shipping cost of the samples, and there is no additional charge for the samples themselves.

Q4: Can you provide a testing report recognized by international standards?

A: Absolutely. We issue authoritative third-party testing reports for each batch of products, which comply with IEC, GB, AS and other international standards, fully meeting the requirements of project acceptance and supervision.

Q5: What is included in the 5-year warranty? Does it cover man-made damage?

A: The 5-year free warranty covers quality-related issues, including free maintenance consultation, replacement of damaged components caused by product quality (not man-made damage, improper installation or natural disasters). Man-made damage is not included, but we provide cost-effective maintenance services for such cases.

Q6: Can you customize the tower according to our specific terrain and environmental conditions?

A: Yes. Our professional engineering team will design tailor-made solutions based on your project’s terrain (plain, hilly, mountain, coastal), wind speed, ice thickness and other environmental factors, ensuring the tower’s stability and adaptability.

Q7: How do you ensure the products are not damaged during shipping?

A: We use moisture-proof, anti-collision and anti-rust packaging for all components, and cooperate with reliable logistics partners. We also take full responsibility for any damage caused by improper packaging or transportation, and provide timely replacement or compensation
