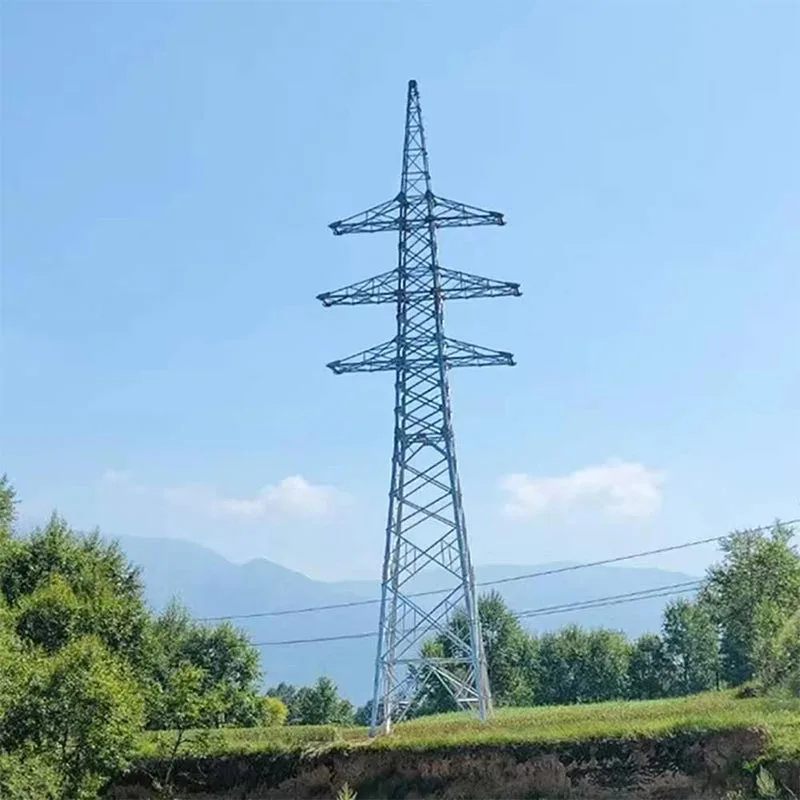

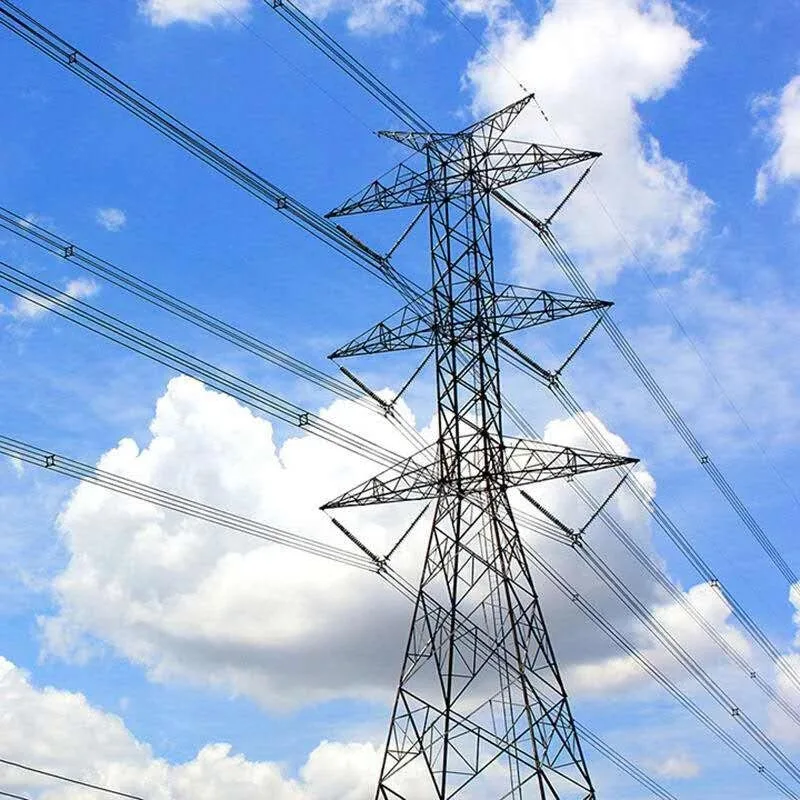

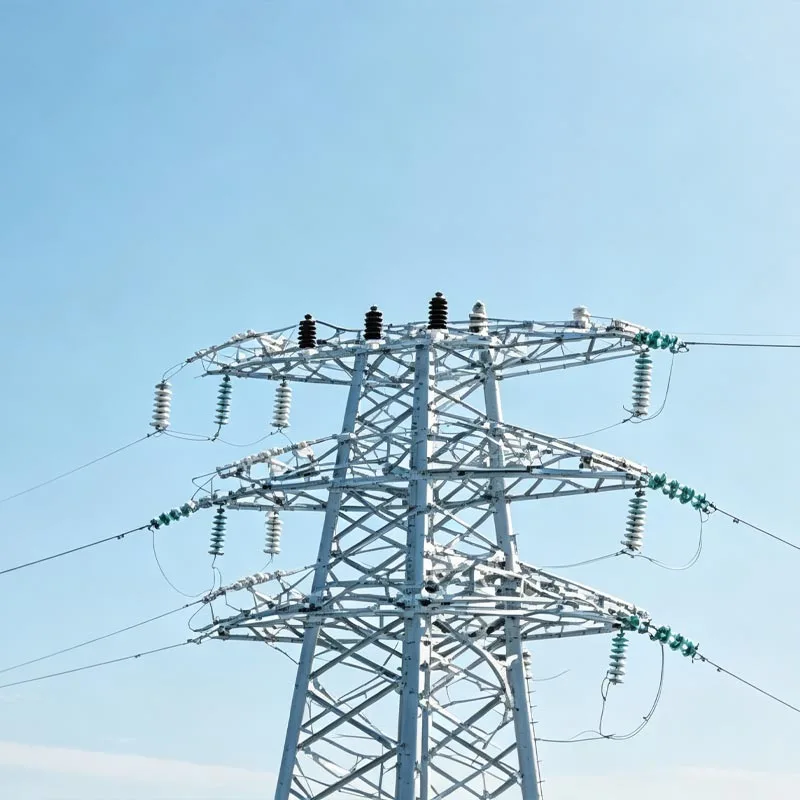

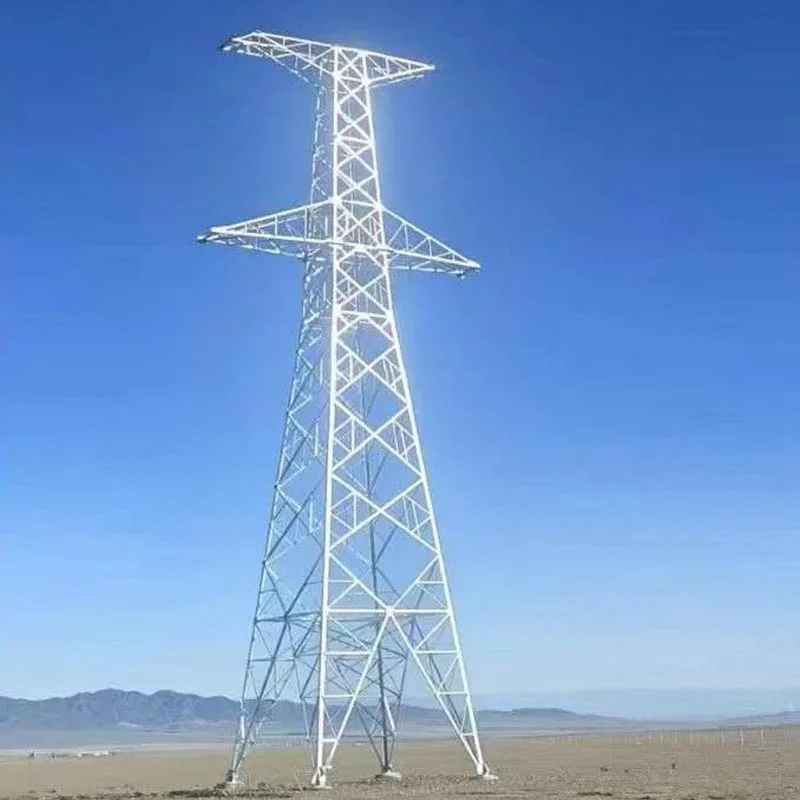

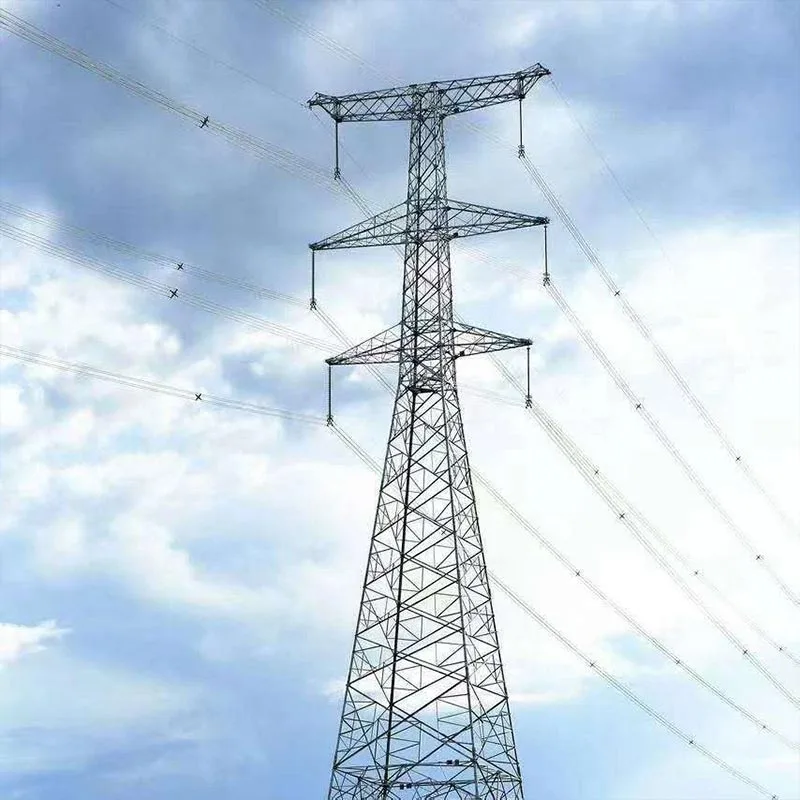

132kV Galvanized Angle Steel Transmission Tower

With the rapid development of industrialization and urbanization, the demand for stable and efficient medium-high voltage power transmission is increasing, and 132kV power grids have become the backbone of regional power supply due to their balanced transmission capacity and cost. Anbang is a manufacturer in China that can cooperate with you for your new project.

As the key carrier of 132kV power transmission, 132kV Galvanized Angle Steel Transmission Towers directly determine the safety and reliability of the power grid. Among various types of transmission towers, galvanized angle steel towers are widely adopted for their standardized production, low cost, and strong adaptability to complex terrains such as mountains and coasts.

The hot-dip galvanizing process effectively solves the corrosion problem of steel structures in harsh environments, extending the service life.

Product advantage

1. Structural Strength & Stability

Our 132kV Galvanized Angle Steel Transmission Tower is made of high-quality angle steel such as Q235, Q345, Q425, with outstanding tensile, compressive and bending resistance.

Lattice truss structure is lightweight yet highly rigid, effectively resisting strong winds, ice coating, earthquakes and other extreme loads.

Designed in accordance with international and national standards, providing high safety redundancy and long-term operational reliability.

2. Hot-Dip Galvanizing Anti-Corrosion Performance

Adopts hot-dip galvanizing process, forming a dense zinc-iron alloy layer with strong adhesion for all-round corrosion protection.

Outstanding weather resistance ensures a service life of 30–50 years even in harsh environments like coastal salt spray, industrial pollution, acid rain and plateau areas.

Low maintenance cost, almost no need for repainting during operation, greatly reducing later maintenance expenses.

3. Economical & Convenient Construction

Factory prefabrication and on-site bolt assembly enable fast construction, short project period and low labor cost.

Standardized components are easy to transport, process and replace; damaged parts can be repaired individually.

Optimized overall cost with moderate initial investment and ultra-long service life.

4. Environmentally Friendly & Reliable Quality

Steel material is 100% recyclable, green and environmentally friendly.Complete quality certificates, in line with ISO 9001 and international power transmission standards.

Stable performance, suitable for long-distance and high-reliability power grid projects.

Parameter

Project cases

Bangladesh G-to-G National Grid Upgrade (Niamatpur–Rohonpur Line)

Location: Rajshahi Region, Bangladesh

Key Features:
● High humidity, heavy rain, industrial corrosion
● Full bolted assembly; factory pre-assembly test
● Relieved power shortage in Rajshahi City

Myanmar 132kV Yangon–Mandalay Grid Reinforcement

Location: Yangon, Mandalay, Myanmar(2018–2023)

Key Features:
● Tropical rainforest, high rain, termite & corrosion
● Galvanizing meets ASTM A123
● Boosted grid capacity for industrial zones

Our service

1. Custom Design & Engineering Service

Professional design according to IEC, ANSI, AS/NZS, GB, or local grid standard

Customized tower type: suspension, tension, angle, terminal, transposition tower

Terrain-adapted design: mountain, plain, coastal, desert, high-altitude are Wind speed, ice thickness, seismic intensity, and loop configuration customization

Full set of engineering drawings, calculation reports, and foundation design

2. Precise Manufacturing & Quality Control

Raw material inspection (Q345/Q420 high-strength angle steel)
CNC cutting, drilling, bending, and assemble

Standard hot-dip galvanizing for long-term anti-corrosion

Full-process quality inspection: dimensional, mechanical, zinc coating thickness testISO 9001 certified production system

3. Packaging & Safe Transportation

Standard export packaging with steel pallets

Component classification and clear identification
Container loading optimization to reduce transport damage

Door-to-port / door-to-door logistics support.

4. On-site Installation & Technical Guidance

Professional technical team for on-site installation guidance

Installation manual, construction scheme, and safety operation training

Bolting torque supervision and tower erection support

Remote real-time technical support

5. Testing, Inspection & Certification

Factory inspection before shipment

Third-party inspection available: SGS, BV, Intertek

Complete certification: material certificate, galvanizing test report, mechanical test report

Acceptance support for owner and consultant

6. After-Sales & Lifetime Service

Quick response to installation and operation problems

Spare parts supply within short lead time

Regular maintenance suggestions

Lifetime technical consultation and project upgrading support

7. One-Stop Turnkey Solution

From design, manufacturing, painting, packaging, transportation to on-site guidance, we provide a full-chain one-stop service to ensure your 132kV transmission line project is completed safely, efficiently, and on time.

FAQ

Q1: What standards do you follow for 132kV Galvanized Angle Steel Transmission Towers?

We design and manufacture according to IEC, GB/T 2694, AS/NZS, ASTM, ANSI, or local power grid standards as required by your country.

Q2: What materials are used for the towers?

Main materials are Q345, Q420 high-strength angle steel. All material certificates are available.

Q3: How about corrosion resistance?

All parts use hot-dip galvanizing, zinc coating ≥ 86 μm, suitable for coastal, industrial, high humidity and high-temperature environments. Service life can reach 30–50 years.

Q4: Can you design for different terrains?

Yes. We customize for plains, mountains, hills, deserts, coastal areas, high-altitude regions with corresponding wind speed, ice thickness and earthquake intensity.

Q5: What types of 132kV towers can you supply?

We provide all types:
Suspension tower
Tension / Dead-end tower
Angle tower
Terminal tower
Transposition tower
Single / double circuit

Q6: What is the production and delivery time?

Normally 25–45 days after deposit and drawing confirmation, depending on order quantity.

Q7: Can you provide design and calculation documents?

Yes. We supply full engineering package:
Tower design drawings
Structural calculation report
Foundation suggestions
Installation manual

Q8: Do you support third-party inspection?

Yes. We accept inspections by SGS, BV, Intertek, LABS or client-designated third parties.
