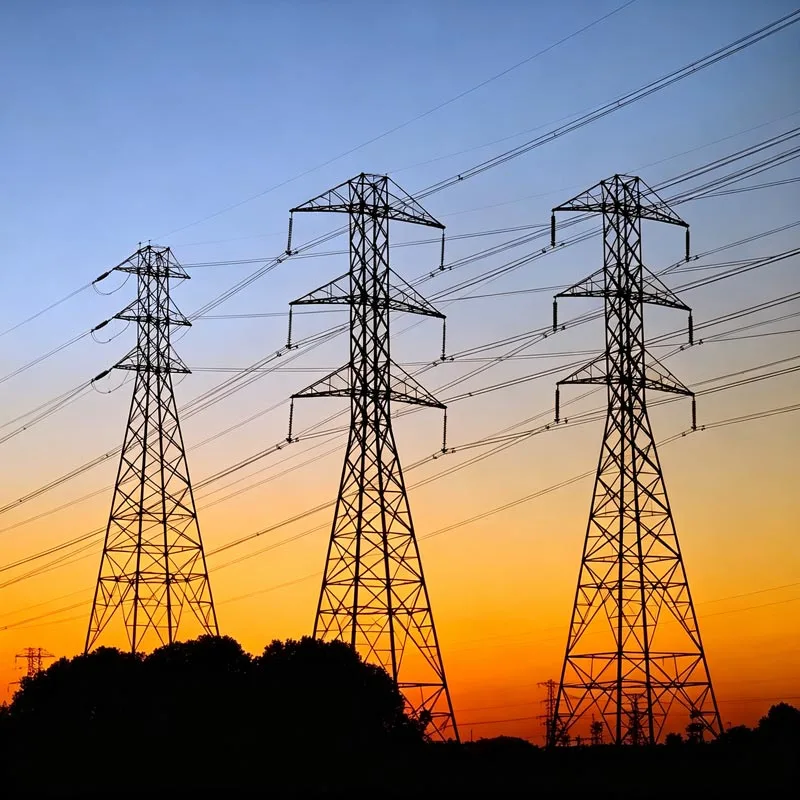

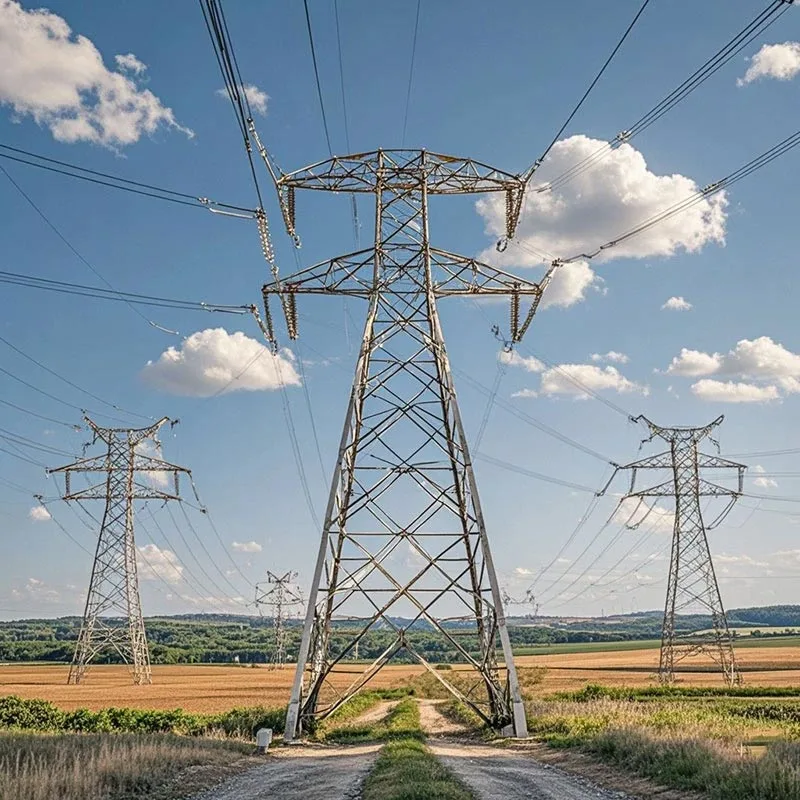

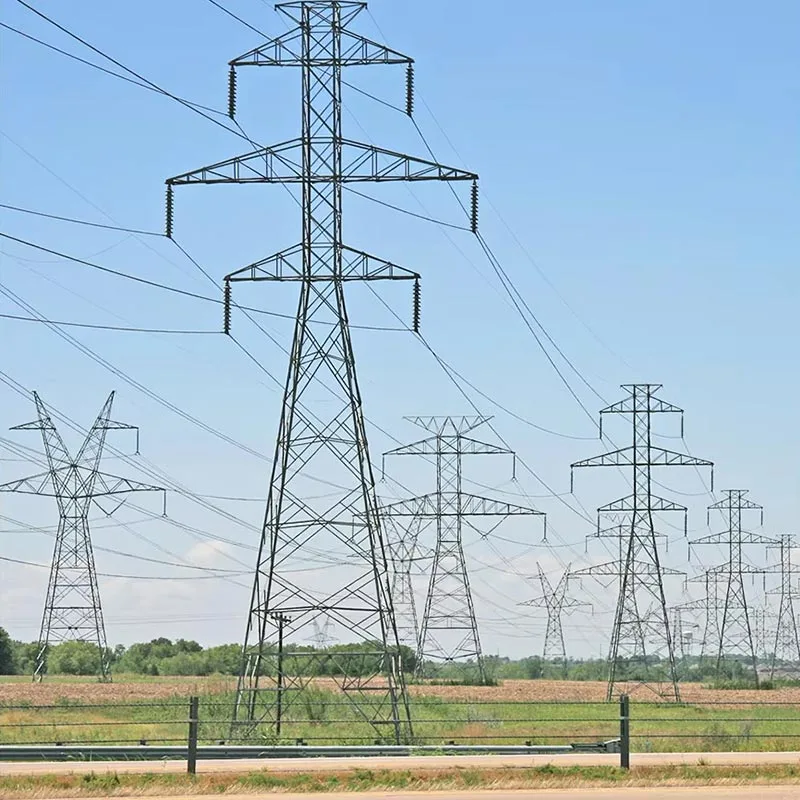

Galvanized Angle Steel Power Transmission Tower

The global demand for reliable, efficient, and sustainable energy infrastructure has never been more pronounced. At the heart of this infrastructure lies the power transmission tower, a critical component that determines the efficiency, safety, and longevity of electrical grids. Among the various structural solutions available, Galvanized Angle Steel Power Transmission Towers have emerged as the industry standard for high-voltage and ultra-high-voltage (UHV) transmission networks worldwide.

This introduction establishes the technical and economic context for angle steel towers, justifying their widespread adoption. It begins by outlining the challenges faced by power utilities, such as the need to transmit power over vast distances while withstanding harsh environmental elements.

The paper then proceeds to define the scope of the study, which focuses on the core advantages, manufacturing rigor, and real-world application of these towers.

By emphasizing their modular design, cost efficiency, and robust protective coating, this section sets the stage for a detailed exploration of how galvanized angle steel towers address the modern demands of power transmission, making them an indispensable asset to energy security and grid resilience.

Product advantage

1. Corrosion Resistance & Long Service Life

All components undergo hot-dip galvanization treatment, forming a dense zinc coating (thickness ≥85μm) on the surface. This coating effectively isolates steel from air, moisture and corrosive media, avoiding rust and corrosion.

The service life can reach 30-50 years, which greatly reduces the later maintenance frequency and extends the service cycle of the tower.

2. High Cost Performance

Compared with solid steel poles, the lattice design uses less steel material, reducing raw material costs. At the same time, the parts are standardized, which simplifies the manufacturing process, lowers production and transportation costs.

The bolted connection design also reduces on-site erection costs, achieving high performance and low investment, and is suitable for large-scale promotion and application.

3. Strong Versatility & Customization

It can be flexibly designed and customized according to different voltage levels (35kV-1000kV), terrains (plains, mountains, coastal areas) and load requirements.

It can be made into suspension towers, tension towers, transposition towers and special crossing towers, fully adapting to various power transmission scenarios and meeting the diverse needs of different projects.

4. Easy Maintenance & Convenient Installation

The bolted connection mode replaces welding, which is convenient for on-site assembly and disassembly. Daily inspection and part replacement can be carried out quickly without large-scale equipment, reducing maintenance difficulty and labor costs.

The standardized parts also ensure the convenience of later maintenance and replacement, improving the efficiency of operation and maintenance.

Parameter

Project Case

Study 1: ±800kV Shanbei-Anhui UHVDC Transmission Project (China)

As a key project of China's UHV backbone power grid, this project is crucial for optimizing regional energy resource allocation and ensuring safe and reliable power supply.

The project adopted galvanized angle steel power transmission towers supplied by Anhui Hongyuan (affiliated to Shandong Electric Engineering & Equipment Group), with a total of 103 towers and a total weight of 7,084 tons.

The towers were made of Q355 high-strength angle steel, with hot-dip galvanization treatment (zinc coating thickness ≥85μm) to ensure corrosion resistance in complex outdoor environments.

Thanks to the standardized design and bolted connection, the towers were delivered 5 months ahead of schedule, becoming the first supplier to complete the full delivery of angle steel towers in the whole line, and the product quality and construction efficiency were highly recognized by the owner.

Partner Clients & Certifications

Philippines: National Grid Corporation of the Philippines (NGCP)
Projects: 230kV, 500kV transmission lines (e.g., Hermosa-San Jose 500kV)
Procurement: Strict quality audits, requires ASTM/AS/NZS compliance

Thailand: Electricity Generating Authority of Thailand (EGAT)
Projects: 230kV, 500kV (e.g., 500kV Tongsong-Songkhla line)
Pre-qualification: Mandatory factory inspection & type test.

Malaysia: Tenaga Nasional Berhad (TNB)
Standards: MS (Malaysian Standards), IEC, ISO 1461 galvanizing
Focus: 275kV, 500kV grid expansion & renewable integration

Vietnam: National Power Transmission Corporation (EVNNPT)
Projects: 500kV (e.g., Nam Dinh 1 Thermal Power Plant to Thanh Hoa)

Vietnam: National Power Transmission Corporation (EVNNPT)
Projects: 500kV (e.g., Nam Dinh 1 Thermal Power Plant to Thanh Hoa)
Volume: Large bulk orders (10,000+ tons per project)

FAQ

Q: What materials are used for Galvanized Angle Steel Power Transmission Towers?

A: Normally high-strength angle steel such as Q355 / Q345B / Q235B (Chinese standard), or equivalent to ASTM A572 Grade 50, EN S355JR. Material certificates (MTC) are provided with each batch.

Q: What voltage levels can your towers support?

A: We supply full series:10kV, 35kV, 66kV, 110kV, 132kV, 220kV, 230kV, 330kV, 400kV, 500kV, 765kV
Also support DC transmission towers and lightning towers, substation structures.

Q: Can you produce according to customer drawings?

A: Yes. We accept customer-designed drawings (PDF / CAD / DXF). We also provide design optimization, structural calculation, and stress analysis if required.

Q: What surface treatment do you use?

A: Hot-dip galvanizing (HDG) per ISO 1461, GB/T 13912, ASTM A123/A153.

Q: How long is the service life?

A: Under normal atmospheric environment, 30–50 years. In severe corrosive areas, it can reach 20–30 years with proper design.

Q: What certifications do you have?

● ISO 9001 Quality Management System
● ISO 14001 Environmental Management
● ISO 45001 Occupational Health and Safety
● CE (EN 1090 for steel structures)
● AWS / CWB welding certification
● Third-party reports: SGS, BV, Intertek
