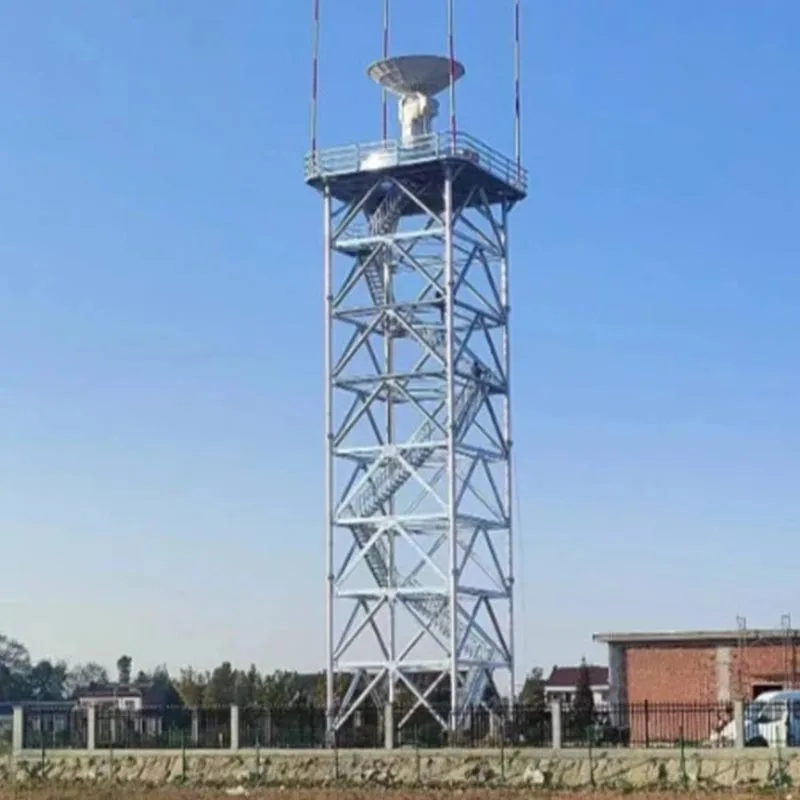

Self-Supporting Signal Tower

Qingdao Anbang New Energy's steel self-supporting signal towers are independently developed and manufactured by the company based on China's advanced manufacturing technology and the advantages of local Qingdao factories.

As a core category, these products are made of high-quality Q235B/Q345B steel, treated with hot-dip galvanization for corrosion protection, combining high strength, high stability, and long service life.

They do not require additional guy wires for support and stand firmly on their own. They are suitable for various scenarios such as 5G communication, broadcasting and television, traffic signals, and meteorological monitoring.

Customized production can be done according to site, height, and load requirements, providing users with safe, reliable, and cost-effective steel self-supporting signal tower solutions.

Technical Specifications

Selection Recommendations

20-30 Meter Steel Self-Supported Signal Tower

Applicable Scenarios: Urban rooftops, industrial parks, town and village areas, small base stations

Reason for Recommendation: Small footprint (9-12㎡), economical cost, convenient installation, meets medium and small range signal coverage requirements. It is the preferred steel self-supported signal tower for urban micro base stations and community signal filling.

40-50 Meter Steel Self-Supported Signal Tower

Applicable Scenarios: Suburban junctions, highways, large factories, county-level broadcasting

Reason for Recommendation: Balanced overall performance, strong wind and earthquake resistance, moderate load-bearing, can carry multi-band antennas, suitable for 5G macro base stations and traffic signal monitoring, providing stable signal support for medium to large area coverage.

60 Meters and Above Steel Self-Supported Signal Tower

Applicable Scenarios: Mountainous areas, remote villages, coastal high-wind zones, provincial broadcasting, large communication hubs

Reason for Recommendation: High load-bearing and stability, made with thickened steel and reinforced truss design, can withstand strong winds, heavy snow, and other harsh weather, achieving long-distance signal coverage. It is the preferred choice for steel self-supported signal towers in complex environments.

Customized Steel Self-Supported Signal Tower

Applicable Scenarios: Special terrains (islands, steep slopes), special loads (multi-device integration), special appearance (landscape integration) requirements

Reason for Recommendation: Qingdao Anbang New Energy Factory can adjust height, structure, material, and appearance as needed, providing one-on-one customized steel self-supported signal tower solutions.

Real Cases

Shandong Qingdao 5G Base Station Steel Self-Supported Signal Tower Project

Project Overview: Provided 30-meter four-pillar angle steel self-supported signal towers for 12 urban base stations in Jiaozhou, Qingdao, equipped with antenna platforms, ladders, and lightning protection systems.

Implementation Effect: Installation cycle shortened by 30%, passed tests against Level 12 typhoons and winter snowfall, verticality and stability met standards, 5G signal coverage without dead zones, highly recognized by Qingdao Mobile.

Jiangsu Coastal Traffic Signal Monitoring Steel Self-Supported Signal Tower Project

Project Overview: Supplied 8 sets of 40-meter three-pillar steel pipe self-supported signal towers for coastal highway traffic monitoring and signal transmission.

Implementation Effect: Hot-dip galvanizing process resists coastal salt corrosion, excellent performance against Level 11 typhoons, 2 years of zero-fault operation, ensuring stable transmission of traffic signals along coastal roads.

Anhui Mountainous Area Broadcasting and Television Steel Self-Supported Signal Tower Project

Project Overview: Customized 3 sets of 60-meter reinforced steel self-supported signal towers, suitable for complex terrain and strong winds in mountainous areas.

Implementation Effect: Overcame transportation and installation difficulties in mountainous areas, covered surrounding 5 towns, solved broadcasting signal blind spots in mountains, service life meets 50-year design requirements.

FAQ

What is the core difference between a steel self-supporting signal tower and a guyed signal tower?

A steel self-supporting signal tower relies on its own structural stability, does not require guy wires, occupies less space, and is flexible to install, making it suitable for urban areas, rooftops, and other space-limited locations; a guyed tower requires multiple guy wires for support, occupies more space, is restricted by site conditions, has lower costs, but is limited in applicable scenarios.

How long is the installation period?

For standard 20–50 meter steel towers, foundation construction takes 7–15 days, tower installation takes 3–7 days, and the overall completion period is 15–25 days; for customized products or projects in complex terrain, the period is adjusted according to the actual situation.

What after-sales guarantee does Qingdao Anbang New Energy provide?

We provide a 5-year warranty and lifetime maintenance service. During the warranty period, non-human-damaged components are eligible for free repair and replacement. Additionally, we offer on-site installation guidance, regular inspections, and technical support to ensure the long-term stable operation.
