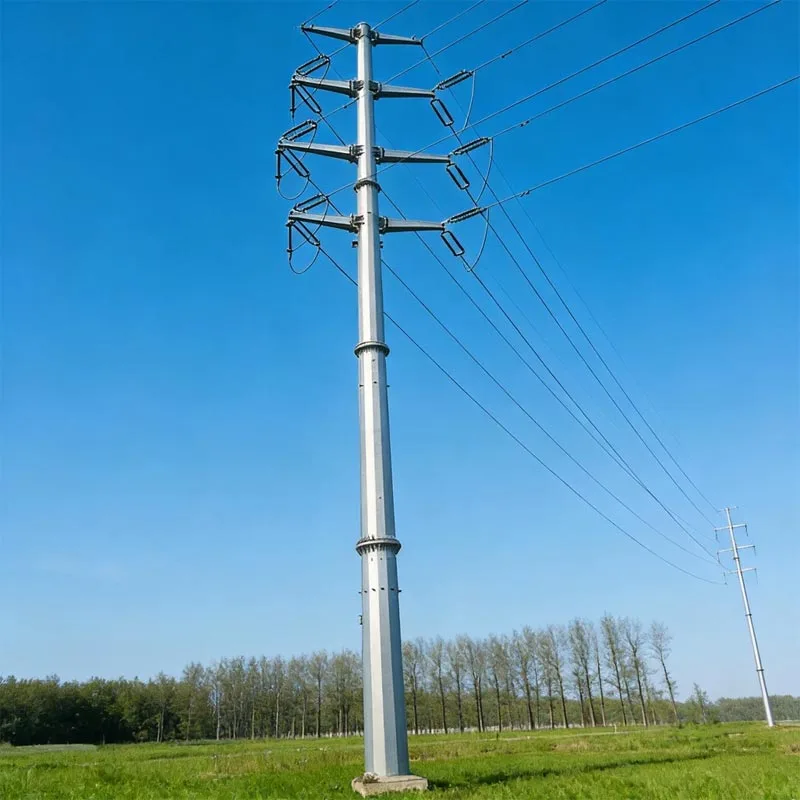

33kV Tubular Steel Distribution Pole

Application Scenarios for Anbang 33kV Tubular Steel Distribution Pole

Anbang 33kV tubular steel distribution poles serve as core infrastructure for medium-voltage overhead power distribution systems, adaptable to diverse geographic and project conditions.

Urban & Suburban Power Networks Ideal for compact urban corridors, residential districts and municipal renovation projects. Thanks to slim footprint and neat appearance, they fit narrow road reserves and densely built zones, deployed as suspension, angle and terminal poles for 33kV overhead feeders.

Rural Electrification & Peri-Urban Grids Suitable for long-distance power delivery to villages, farmlands and small towns. Lightweight prefabricated structure lowers transportation difficulty in remote terrain, supporting rural grid upgrading and extension programmes.

Industrial Zones & Commercial Parks Stably supply power to factories, logistics hubs, shopping complexes and industrial estates. High structural load capacity accommodates heavy conductor loads and frequent network expansion demands.

Renewable Energy Grid Connection Widely adopted for outgoing lines of medium-scale solar farms and wind power stations, linking renewable generation sites to regional distribution substations.

Coastal, High-Wind & Harsh Environment Projects Hot-dip galvanised treatment delivers superior anti-corrosion performance, making them reliable for coastal areas, humid regions and locations with strong wind speeds.

Infrastructure Supporting Projects Applicable for power supply along electrified transport routes, mining zones and remote engineering facilities. All poles are backed by official test reports, full ISO certifications and rich global project references; customised designs are available to match local wind load, soil conditions and technical standards.

Critical Installation Specifications & Precautions for 33kV Tubular Steel Distribution Pole

Core Installation Specifications

Foundation Requirements Foundation type shall be designed according to local wind load, soil bearing capacity and pole height. Concrete embedded foundation or anchor bolt foundation is commonly adopted. Foundation excavation depth, dimension and concrete strength grade must strictly follow engineering drawings. Backfill shall be compacted layer by layer to guarantee sufficient anti-overturning stability.

Verticality & Position Tolerance After erection, the pole vertical deviation shall not exceed 3‰ of pole height. Horizontal positional offset at ground level must comply with route design; deviation shall be controlled within the allowable range specified in power distribution standards.

Section Connection Standard For multi-section tubular poles, flange connection surfaces must be clean and flat. All high-strength bolts shall be tightened symmetrically in sequence to reach specified torque value. Lock washers shall be installed completely to prevent bolt loosening under long-term vibration.

Earthing Specification Mandatory reliable earthing installation. Earthing resistance must meet local 33kV distribution grid requirements. Earthing conductors shall be firmly welded or bolted to pole base, and anti-corrosion treatment shall be applied on connection joints

Fitting Assembly Standard Cross arms, insulators, cable clamps and other hardware shall be mounted in accordance with design orientation. Pre-set mounting holes shall not be drilled or modified arbitrarily. Hardware tightening torque shall follow manufacturer technical guideline.

Key Precautions of 33kV Tubular Steel Distribution Pole

Precautions During Transportation & Storage

1.Protect the hot-dip galvanised surface from scratches, impact and friction. Any coating damage must be repaired with matching anti-corrosion coating on time.
2.Support poles with soft padding during stacking and transit to avoid local deformation. Do not place heavy loads directly on pole bodies.
3.Store poles on flat, well-drained ground; separate layers using timber supports to prevent moisture retention and surface corrosion.

Precautions During Installation

1.Strictly adopt designated hoisting positions. Improper lifting binding may cause permanent bending deformation of the tubular pole.
2.Do not arbitrarily drill new holes or cut the pole body without manufacturer’s technical approval, which will weaken structural strength.
3.Tighten flange high-strength bolts symmetrically to the specified torque; complete secondary inspection after installation.
4.Control pole vertical deviation within 3‰ of pole height. Ensure foundation compaction to avoid pole tilting and overturn risks.
5.Reliable earthing connection is required. Check earthing resistance to meet local 33kV power grid standards.
6.Stop construction during thunderstorms, heavy rain and strong wind conditions to ensure operational safety.

Precautions During Operation & Maintenance

1.Never add extra hardware, cables or equipment exceeding the pole’s designed load capacity.
2.Conduct regular inspections for bolt loosening, coating peeling, corrosion and visible pole deformation.
3.Timely repair damaged galvanised layers to slow rusting, especially for poles deployed in coastal and humid areas.
4.Avoid heavy machinery collision near pole foundations; set up warning signs at road-side pole locations.
5.Record inspection results regularly; carry out reinforcement treatment once abnormal conditions are found.

Core Routine Maintenance Guidelines for 33kV Tubular Steel Distribution Pole

1. Visual Inspection (Regular Cycle: Quarterly / Semi-annually)

• Check the pole body for bending, denting, cracking and deformation.
• Inspect hot-dip galvanised coating: detect peeling, chipping, rust spots, especially at flanges, welding seams and base sections.
• Verify crossarms, insulators, fittings and cables for damage, aging or displacement.
• Confirm no trees, foreign objects or debris leaning against the pole.

2. Connection & Bolt Inspection

• Check all flange bolts, fasteners and lock washers for loosening, rust or missing parts.
• Retighten bolts to required torque if loose; replace severely corroded hardware.
• Examine earthing connection joints; ensure firm contact without oxidation.

3. Foundation & Surrounding Environment Check

• Inspect foundation for settlement, cracking, water accumulation or soil erosion.
• Remove piled soil, weeds and water around the pole base to prevent accelerated corrosion.
• Monitor verticality; address obvious tilt immediately.

4. Earthing Performance Test (Annual Recommended)

• Measure earthing resistance to comply with local 33kV distribution specifications.
• Repair broken or corroded earthing conductors and rework joints when resistance exceeds limits.

FAQ for Anbang 33kV Tubular Steel Distribution Pole

Q1: What anti-corrosion treatment do you apply on the tubular steel poles?

A1: All poles adopt hot-dip galvanisation as standard treatment. The galvanised layer effectively resists rust, salt fog and humid climate, suitable for inland, rural and coastal environments. Custom duplex coating (galvanising plus paint) is available for severely corrosive areas.

Q2: Can you provide official test reports and relevant certifications?

A2: Yes. We supply complete structural load test reports, material inspection certificates, ISO 9001 certification and other required documents for tender and project acceptance. All technical data meets international medium voltage distribution standards.

Q3: Is custom design supported?

A3: Absolutely. We adjust pole height, wall thickness, top load, mounting hole layout and flange size according to local wind load, soil condition and 33kV line engineering requirements. Suspension, angle and terminal pole designs are all available.

Q4: What are your production and delivery capabilities?

A4: We own full automatic production lines with stable mass production capacity. We can handle large bulk orders and arrange flexible shipment schedules to meet EPC and utility project timelines.

Q5: What foundation type is recommended for installation?

A5: Anchor bolt foundation or cast-in-place concrete foundation is commonly used. The specific dimension depends on pole height, wind speed and soil bearing capacity. We can offer reference foundation drawings upon request.

Q6: How long is the expected service life?

A6: Under normal operation and regular maintenance, hot-dip galvanised steel poles achieve a service life of 25–30 years. Service lifespan can be extended with enhanced anti-corrosion solutions for coastal high-salt regions.
