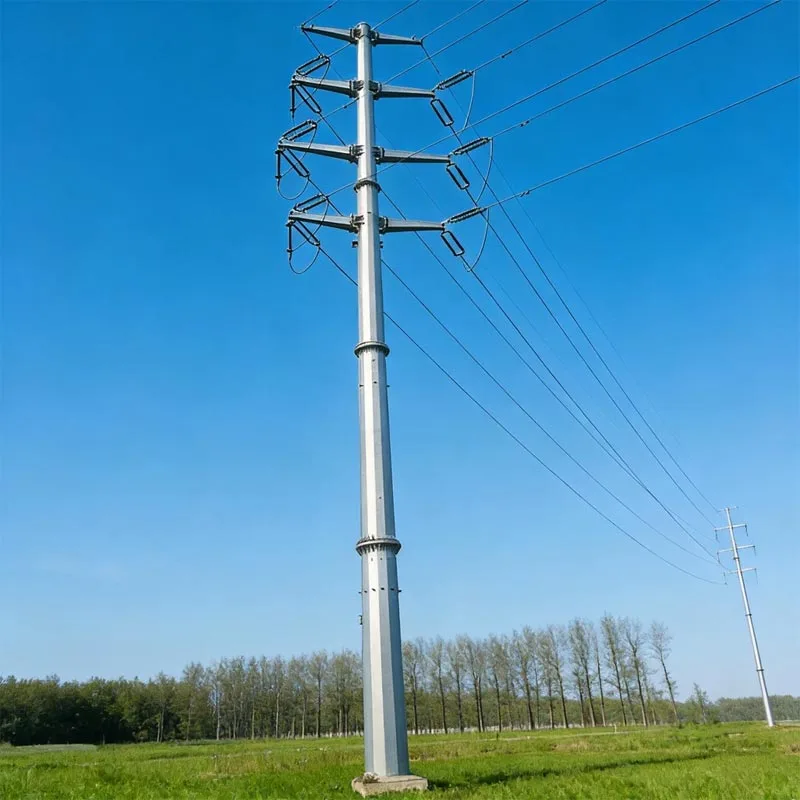

Steel Pipe Transmission Pole

Application Scenarios for Anbang Steel Pipe Transmission Poles

1.Urban & Suburban Power Grid Compact tubular structure fits narrow city roads, residential blocks and business districts for 10kV–110kV distribution lines, replacing bulky concrete poles to save urban land space.
2.Rural & Mountainous Power Construction Lightweight for easy mountain transportation; high wind and ice resistance adapts to hilly, windy rural areas for rural power upgrade projects.
3.Coastal & Offshore Nearshore Power Lines Full hot-dip galvanization delivers strong salt fog anti-corrosion performance, widely used in coastal town power transmission networks.
4.Desert & High-Altitude Regions High tensile steel resists strong sandstorms and low-temperature cracking, ideal for new energy supporting power lines in plateau and desert wind/solar bases.
5.Cross-Border Overseas Grid Projects Compliant with international CE, ISO standards, applied in Middle East, Central Asia and Southeast Asia national grid, industrial park power transmission and temporary power engineering.
6.New Energy Matching Transmission Support booster station outgoing lines and wind farm collector lines, customized terminal and corner poles for photovoltaic and wind power supporting grids.

Critical Installation Specifications & Precautions for Steel Pipe Transmission Pole

Core Installation Specifications

1.Foundation Construction Dig foundation pits per design drawing; embed anchor bolts vertically with standard burial depth. Concrete strength must reach C30 or above, fully vibrated without hollowing. Allow 7-day curing before pole erection.

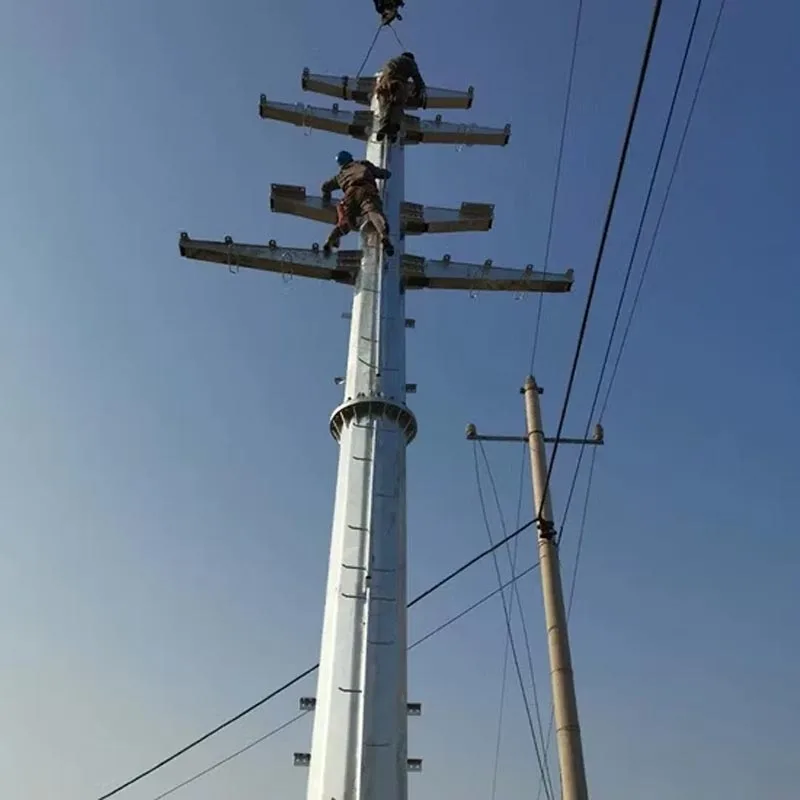

2.Pole Hoisting & Alignment Use professional lifting tools; lift slowly to avoid surface galvanized layer scratch. Adjust vertical deviation within 3‰ of pole height, horizontal offset controlled under 20mm.
3.Connection Assembly Align flange holes accurately; use full-set standard high-strength bolts, tighten crosswise to specified torque. Seal flange joints with anti-rust sealant to block moisture.
4.Accessories Mounting Fix crossarms, insulators and cable fittings with matched fasteners; avoid forced drilling on pole body to prevent corrosion weak points.

Key Precautions

1.Anti-corrosion Protection Repair any damaged galvanized coating with zinc-rich paint immediately during installation; do not weld on finished poles on site.
2.Safety Control Set warning barriers during hoisting; prohibit standing under suspended poles. Operators wear insulated tools for live adjacent line construction.
3.Post-installation Inspection Recheck bolt tightness after 48 hours of erection; test verticality and foundation stability before wire stringing.
4.Environment Adaptation For coastal areas, add extra anti-salt spray coatings on exposed joints; reinforce foundation anti-sliding treatment in mountain slope sites.

Core Routine Maintenance Guidelines

Regular routine maintenance is essential to extend the service life and guarantee stable operation of steel pipe transmission poles. Conduct monthly full visual inspections to check the pole body for galvanized coating peeling, rust spots and impact dents, while examining flange joints, connecting bolts and crossarm accessories for looseness, corrosion or aging sealing materials, and document all defects for targeted repairs. Every quarter, retighten all high-strength bolts to standard torque and coat exposed bolt threads with anti-rust grease; repair any damaged zinc coating with zinc-rich paint promptly, especially for poles deployed in corrosive coastal salt-fog environments. Perform semi-annual foundation inspections to spot concrete cracks, foundation sinking, tilting or peripheral soil erosion, and clear weeds and accumulated silt to prevent long-term water immersion that damages base stability. Complete an all-round annual safety assessment by testing pole verticality and structural deformation, verifying grounding reliability, replacing aged insulators and worn wire fittings, and clearing bird nests and floating debris that trigger short-circuit hazards. In addition, launch emergency spot maintenance right after severe weather such as strong winds, thunderstorms and sandstorms to rectify tilted poles, renew corroded parts and reinforce loose foundations to avoid power supply failures.

FAQ for Anbang Steel Pipe Transmission Pole

Q1: What steel material do you adopt for transmission poles?

A: We use high-strength Q355 low-alloy steel as raw material. All poles undergo full hot-dip galvanization, offering outstanding anti-rust performance and a service life over 50 years under normal outdoor conditions.

Q2: Can the steel pipe poles withstand strong wind and harsh weather?

A: Yes. Our products pass professional CNAS wind load, anti-salt spray and anti-ice tests. Custom wall thickness and structural designs support coastal windy zones, desert sandstorm areas and high-altitude cold regions.

Q3: What certifications does your steel transmission pole have?

A: All poles are certified with ISO9001 quality system, CE, SGS and meet China GB standards as well as international ANSI specifications, suitable for domestic and overseas grid projects.

Q4: Is customized size and design available?

A: Absolutely. Our R&D team provides tailor-made solutions for tension poles, terminal poles, corner poles and multi-circuit poles based on voltage grades from 10kV to 220kV, matching clients’ project drawings.

Q5: How long is your production & delivery cycle?

A: Our automated workshop delivers over 300 poles daily. Standard models take 7–10 working days, while large customized bulk orders require 15–25 days according to quantity.

Q6: What maintenance work is needed after installation?

A: Monthly visual checks for rusted coating; quarterly bolt retightening and anti-rust grease application; semi-annual foundation inspection; annual overall structural safety testing. Minor zinc coating damage can be fixed with zinc-rich paint on site.

Q7: Are steel pipe poles better than concrete poles?

A: Steel poles feature lighter weight for easy transportation and installation, smaller occupation area, flexible design and high seismic performance, making them ideal for cities, mountains and new energy wind & solar power supporting lines.

Q8: Do you provide full project supporting service?

A: We offer one-stop service including structural design, production, testing, packaging and container delivery. We have rich project experience in Southeast Asia, Central Asia and the Middle East power grid construction.
