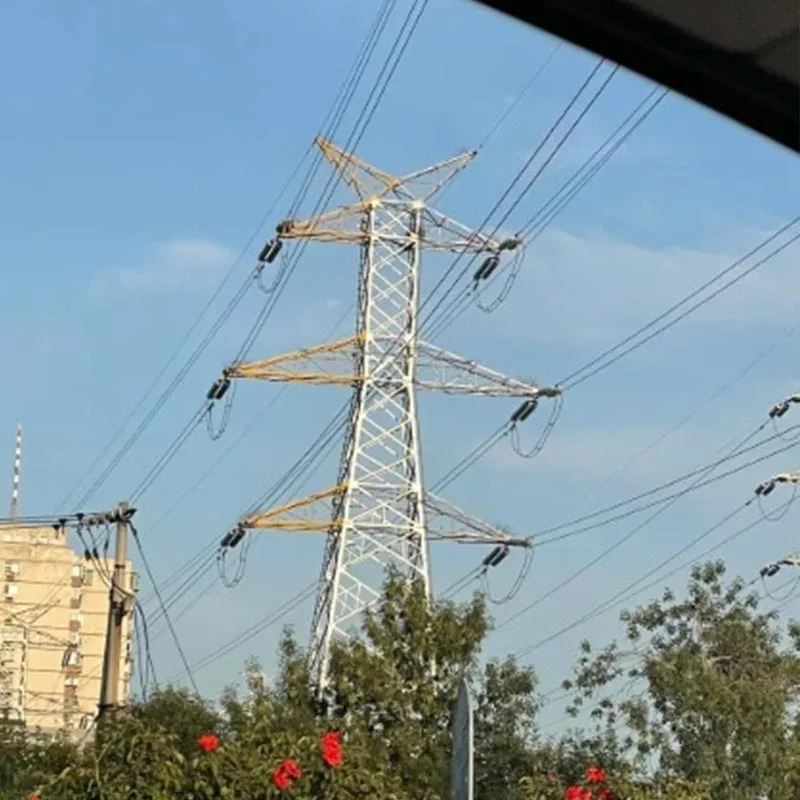

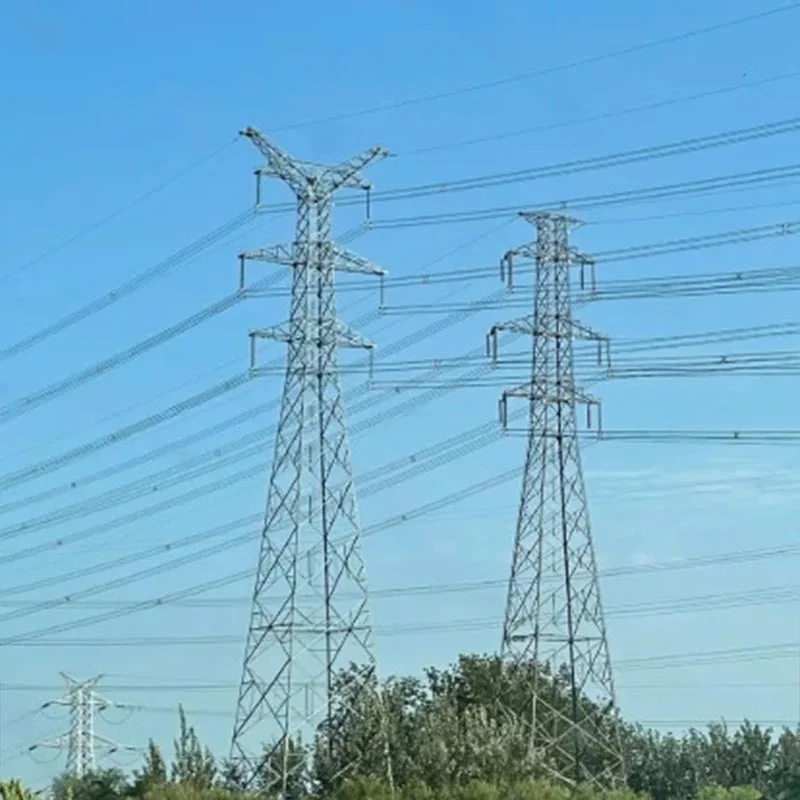

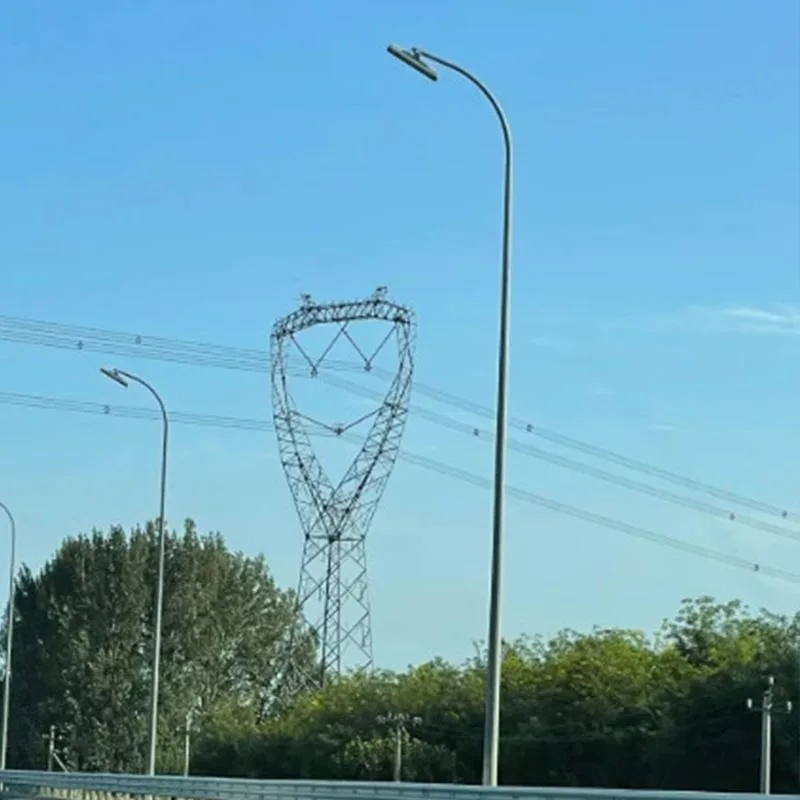

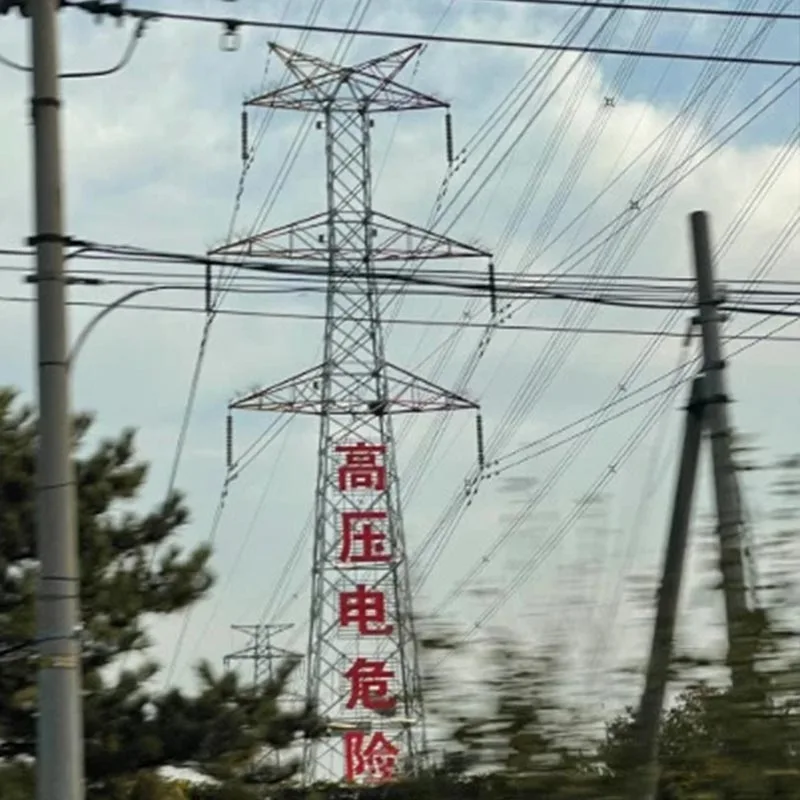

Galvanized Tangent Tower

Qingdao Anbang New Energy adopts high-quality steel and hot-dip galvanizing process to create a galvanized tangent tower with a stable structure, anti-corrosion and durable, and strong adaptability.

Our products can efficiently bear the vertical load and wind load of the conductor and are widely used in various voltage levels of transmission straight sections and small corner lines to ensure the stability and safety of power transmission.

Why choose Anbang galvanized tangent tower?

Directly supplied by the factory

As a benchmark enterprise of China's electric power steel structure, Qingdao Anbang New Energy has a modern production base of 50,000 square meters, with an annual output of more than 50,000 tons of tower components, and independent production of galvanized tangent towers in the whole process.

Galvanizing process with anti-corrosion protection

Adopting the international advanced hot-dip galvanizing process, the average thickness of the galvanized layer is ≥ 85μm, in line with the GB/T 13912 standard, the zinc layer forms a metallurgical combination with steel, strong adhesion, salt spray resistance, acid and alkali resistance, in coastal, saline-alkali, alpine and other harsh environments, the service life of galvanized tangent towers can reach more than 35 years, greatly reducing the later maintenance cost.

Superb technology and scientific design

Gathering a senior power steel structure design team, using PLS and other professional software for accurate modeling, the galvanized tangent tower structure complies with national specifications such as GB 50545, optimizes mechanical distribution, and has a wind resistance level of 12 and an earthquake intensity of 7.

Strict quality and complete certification

The galvanized tangent tower has passed the certification of ISO9001 quality system and ISO14001 environmental system, and each process has been tested by a third party, and 100% of the component size, mechanical properties and galvanizing quality have reached the standard, and have won the honor of "Top Ten Enterprises in Steel Pipe Rods", and the products cover hundreds of power projects across the country.

Customized services

According to the voltage level, topography and load requirements of the project, galvanized tangent towers of different heights, spans and structural forms can be customized, covering angle steel type, steel pipe type, combined type, etc., to meet the application of 10kV-1000kV transmission lines and various special scenarios.

Product Specifications

Application scenarios

High-voltage transmission lines: 10kV-1000kV AC/DC transmission straight sections and small corner sections, as core support bearing wires and lightning protection lines.

Mountain power transmission engineering: suitable for mountainous and hilly terrain, the lightweight design of galvanized tangent towers is convenient for transportation and installation, and has strong resistance to geological disasters.

Coastal saline-alkali area: The hot-dip galvanizing process gives the towers excellent anti-corrosion properties, which can resist saline-alkali erosion and are suitable for coastal power transmission projects.

Power transmission in industrial parks: Adapt to the high-voltage transmission needs of industrial parks and industrial parks, with compact models, saving space and adapting to the complex layout of the plant.

New energy supporting transmission: Supporting transmission lines of new energy projects such as photovoltaic and wind power, galvanized tangent towers can adapt to the complex outdoor environment of new energy projects to ensure efficient power transmission.

Our services

Preliminary consultation: The professional team provides one-on-one consultation, accurately recommends the specifications and models according to project needs, and provides free scheme design.

Customized design: Relying on a professional design team, combined with the project topography, voltage level, and load requirements, we tailor the galvanized tower solution to ensure adaptability and safety.

Production control: The whole process is transparent production, customers can check the production progress and quality inspection report in real time, and strictly control each production process.

Logistics and distribution: In-depth cooperation with large logistics enterprises to provide nationwide transportation services, professional packaging to prevent transportation damage, and ensure on-time delivery.

Installation guidance: Senior technicians are dispatched to guide the installation on site, standardize the installation process, and ensure installation quality and construction safety.

After-sales guarantee: Establish and improve the after-sales system, free maintenance and replacement of damaged components during the warranty period of galvanized tangent towers, and provide lifelong technical consultation and maintenance suggestions.

Real case

A 500kV high-voltage transmission project in Shandong: 32 customized galvanized tangent towers with a tower height of 45-60m, adapted to the mountainous terrain, with excellent anti-corrosion performance and structural stability, successfully passed the acceptance, and have been in stable operation for 5 years without any quality problems.

Jiangsu coastal wind power supporting transmission project: 48 customized coastal tangent towers, optimized the galvanizing process for the coastal saline-alkali environment, effectively resisted sea breeze erosion, and ensured the smooth transmission of wind power, which was highly recognized by customers.

Qinghai photovoltaic power station transmission project: adapt to the cold and windy environment, customize 26 lightweight tangent towers, convenient and efficient installation, adapt to the distributed transmission needs of photovoltaic power stations, and help new energy power grid connection.

FAQ

Is the thickness of the galvanized coating of the galvanized tower customizable?

The thickness of the galvanized layer can be customized according to customer needs and use environment, the conventional thickness is ≥ 85μm, and the special harsh environment can be increased to more than 100μm, all of which meet the relevant national standards.

What is the production cycle of galvanized tangent towers?

The production cycle for regular specifications is 7-15 days, and the customized specifications are 15-30 days according to the complexity and quantity of the order, which can ensure the project schedule.

Does Anbang provide installation services?

We provide professional installation guidance services, dispatch technicians to guide the installation on site, and assist customers to connect with professional installation teams to ensure the installation specification and safety.

What is the warranty period?

The warranty period of galvanized tangent towers is 5 years, and if there are quality problems such as galvanized layer peeling off and component damage during the warranty period, we will repair and replace them free of charge; At the same time, we provide lifelong technical consultation and maintenance advice.

How to determine the specification and model of galvanized tangent tower?

We will accurately calculate according to the voltage level, transmission line type, topography, load requirements and other parameters of the customer's project, recommend appropriate specifications and models, or provide customized design solutions.
