High-Strength Steel Pipe Tower

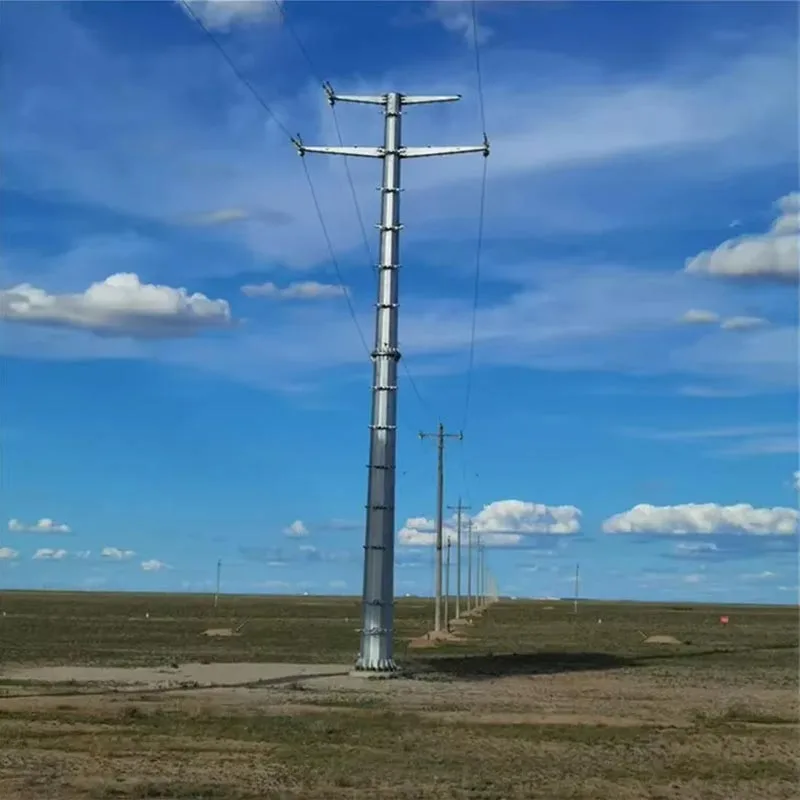

Anbang High-Strength Steel Pipe Tower (also referred to as Anbang Tubular Steel Pole) is a specialized, load-bearing structure engineered by Anbang, primarily fabricated from high-strength steel tubes or pipes.

Designed for 33kV power distribution and transmission lines, it serves as a robust vertical support for overhead electrical conductors, insulators, and associated equipment.

The primary role is to securely suspend 33kV overhead power lines, bearing the full weight of conductors, insulators, and fittings. It resists extreme tension, compression, and torsion from line pulls and thermal expansion/contraction.

Core advantage and key point

The core advantage of Anbang High-Strength Steel Pipe Tower lies in its high-strength-to-weight ratio andall-round adaptability,which are closely integrated with key selling points to form a competitive edge for 33kV power distribution and transmission scenarios.

Made of high-grade high-tensile steel (Q355, Q420), it is lighter than traditional angle-steel towers but 30% stronger, enabling it to bear heavy conductor loads, strong winds, ice-snow, and seismic forces—this is the core advantage of structural stability, and also the key point of superior durability and low risk.

Another core advantage is cost and efficiency optimization its tapered tubular design reduces wind resistance, minimizes foundation size, cuts material usage and transportation costs; bolted assembly allows on-site installation 50% faster than concrete towers

Corrosion resistance is also a core advantage hot-dip galvanization ensures 30+ years of maintenance-free service, while 100% recyclable steel aligns with green infrastructure demands.long service life and environmental friendliness, catering to sustainable development needs.

Technical specification

1. Material Specifications

The main structure adopts high-grade high-tensile steel, mainly Q355D and Q420D, complying with GB/T 1591-2018. Q355D has a yield strength ≥355MPa and tensile strength 530-680MPa; Q420D has a yield strength ≥420MPa and tensile strength 590-770MPa.

Welding materials match the base metal, with ER50-6 for Q355D and ER55-G for Q420D, and the weld metal’s tensile strength is equivalent to the base metal.

2. Structural Design

It adopts a tapered or polygonal tubular structure, with a tower height of 15-40m (customizable). The pipe diameter ranges from 300mm to 1200mm, and the wall thickness is 8-25mm.

The connection method is bolted or flanged, using 10.9-grade high-strength bolts, with a friction coefficient ≥0.45 after sandblasting treatment.

3. Performance Indicators

Wind load resistance meets GB 50009-2012, with a basic wind pressure ≥0.6kN/m²; seismic resistance complies with GB 50011-2010, applicable to seismic intensity ≤8 degrees.

The top horizontal displacement ≤H/100 (H is tower height), and the compression member slenderness ratio ≤150.

4. Anti-Corrosion & Processing

Hot-dip galvanization (GB/T 13912-2002) is adopted, with a zinc layer thickness ≥86μm; the surface derusting grade reaches Sa2.5.

The production process includes CNC cutting, bending, welding and ultrasonic testing, with first-class welds subject to 100% UT testing.

5. Applicable Standards

Complies with GB 50017-2017, DL/T 5486 and other standards, ensuring stable performance and safe operation in urban, rural and uneven terrain.

Competitive advantage

1. Customer Trust

Solid Foundation Built on Quality & Cooperation: Unlike many competitors that only focus on product sales, Anbang has established long-term and stable cooperative relationships with well-known enterprises such as Beijing Gas Group, Shanghai Gas Group and PetroChina Kunlun Gas Co., Ltd., and has been recognized as a qualified supplier by them.

We adhere to the commitment of "high-quality products and stable performance", and all products are equipped with product liability insurance underwritten by Ping An Insurance (Group) Company of China, Ltd., which further enhances customer confidence.

Over the years, we have accumulated a large number of successful cases, and our good market reputation has become a key difference in gaining customer trust.

2. After-Sales Service

Comprehensive & Efficient Full-Cycle Support: Anbang has built a sound after-sales service system, with a sales network covering 18 provincial capitals in China, which is more comprehensive than the fragmented after-sales layout of competitors. We provide a 10-year product warranty, and implement the three guarantees (repair, replacement and return) for products with manufacturing quality problems, bearing all related costs.

In addition, we offer free technical training and 24-hour online and video technical support, ensuring that any after-sales problems can be responded to and solved in a timely manner, which is far more considerate than the simple after-sales service of competitors.

3. Certification

Strict Compliance with Global & Industry Standards: Anbang’s high-strength steel pipe towers have passed a series of authoritative certifications, including ISO 9001 quality management system certification, and fully comply with Chinese national standards such as GB/T 1591-2018 and GB/T 13912-2002, as well as international standards such as ASTM A123 and ISO 1461.

Unlike some competitors that only meet basic standards, our products have undergone strict third-party testing, with 100% ultrasonic testing for first-class welds, ensuring that every batch of products meets high-quality requirements and has stronger market competitiveness in both domestic and international markets.

4. Branding

Professional & Reliable Industry Image: Anbang focuses on long-term brand building, adhering to the concept of "quality first, integrity-based", and has been awarded the title of "2024 3·15 Product and Service Quality Integrity Commitment Enterprise", which is a recognition of our brand strength.

We focus on the R&D and innovation of high-strength steel pipe tower technology, and form a professional brand image in the power infrastructure field, which is different from the homogeneous brand positioning of competitors.

Our brand influence is continuously improved through word-of-mouth communication and industry exchanges, becoming the preferred brand for customers in the 33kV power distribution field.

5. Shipping

Customized & Cost-Effective Logistics Solutions: Anbang has a professional logistics team, which can provide customized shipping solutions according to the size, quantity and destination of products, solving the transportation problems of special-sized products that plague many competitors.

We cooperate with well-known logistics companies to ensure that products are delivered safely and on time, and bear the transportation costs within the agreed scope, reducing the logistics burden of customers.

For international shipments, we can adapt to the environmental and inspection standards of different countries, provide professional packaging and cleaning services, and ensure that products meet the requirements of the destination port, which is more professional and humanized than the general shipping service of competitors.

FAQ about anbang high strength steel pipe tower

Q1: What grade of steel does Anbang use for the high-strength steel pipe tower, and how does it ensure structural stability?

A1: We mainly adopt high-grade high-tensile steel Q355D and Q420D, which comply with GB/T 1591-2018 standards. Q355D has a yield strength ≥355MPa and tensile strength 530-680MPa, while Q420D has a yield strength ≥420MPa and tensile strength 590-770MPa.

To ensure stability, we use precision forming, strict welding processes (matching welding materials with base metal), and 100% ultrasonic testing for first-class welds. The tapered/polygonal tubular design also minimizes wind resistance, enhancing overall structural robustness.

Q2: What is the service life of Anbang’s high-strength steel pipe tower, and how is corrosion resistance guaranteed?

A2: The product has a service life of over 30 years. Corrosion resistance is ensured by hot-dip galvanization (complying with GB/T 13912-2002), with a zinc layer thickness ≥86μm, and the surface derusting grade reaches Sa2.5.

This treatment effectively resists harsh environmental factors such as humidity, salt spray, and industrial corrosion, reducing maintenance needs significantly.

Q3: Does Anbang provide after-sales support, and what does the warranty cover?

A3: Yes, we offer comprehensive after-sales support. We provide a 10-year product warranty, covering all manufacturing quality issues—we implement the "three guarantees" (repair, replacement, return) and bear all related costs.

Additionally, we offer free technical training, 24-hour online/video technical support, and on-site maintenance if needed, with a sales network covering 18 provincial capitals in China for efficient response.

Q4: Are Anbang’s high-strength steel pipe towers certified, and do they meet international standards?

A4: Absolutely. Our products have passed authoritative certifications including ISO 9001 quality management system certification. They fully comply with Chinese national standards (GB/T 1591-2018, GB/T 13912-2002) and international standards such as ASTM A123 and ISO 1461.

All products undergo strict third-party testing to ensure they meet high-quality requirements for both domestic and international markets.

Q5: How does Anbang handle shipping, especially for large or international orders?

A5: We have a professional logistics team that provides customized shipping solutions based on product size, quantity, and destination. We cooperate with well-known logistics companies to ensure safe and on-time delivery, and bear transportation costs within the agreed scope.

For international orders, we adapt to the environmental and inspection standards of different countries, provide professional packaging and cleaning services, and ensure products meet destination port requirements.

Q6: Can Anbang customize the steel pipe tower according to our specific project needs?

A6: Yes, customization is available. We can adjust tower height (15-40m, customizable), pipe diameter (300mm-1200mm), wall thickness (8-25mm), and connection methods (bolted/flanged) to meet your project’s unique requirements, such as specific load-bearing needs, terrain conditions, or 33kV power distribution scenarios.

Q7: What makes Anbang’s high-strength steel pipe tower different from competitors?

A7: Our key differences lie in:
(1) Solid customer trust from long-term cooperation with well-known enterprises and product liability insurance;
(2) Comprehensive after-sales support (10-year warranty, 24-hour service);
(3) Strict compliance with global standards and third-party testing;
(4) A professional, reliable brand image; (5) Customized, cost-effective shipping solutions—forming a full-cycle competitive advantage.
