High Voltage Power Line Steel Pole Tower

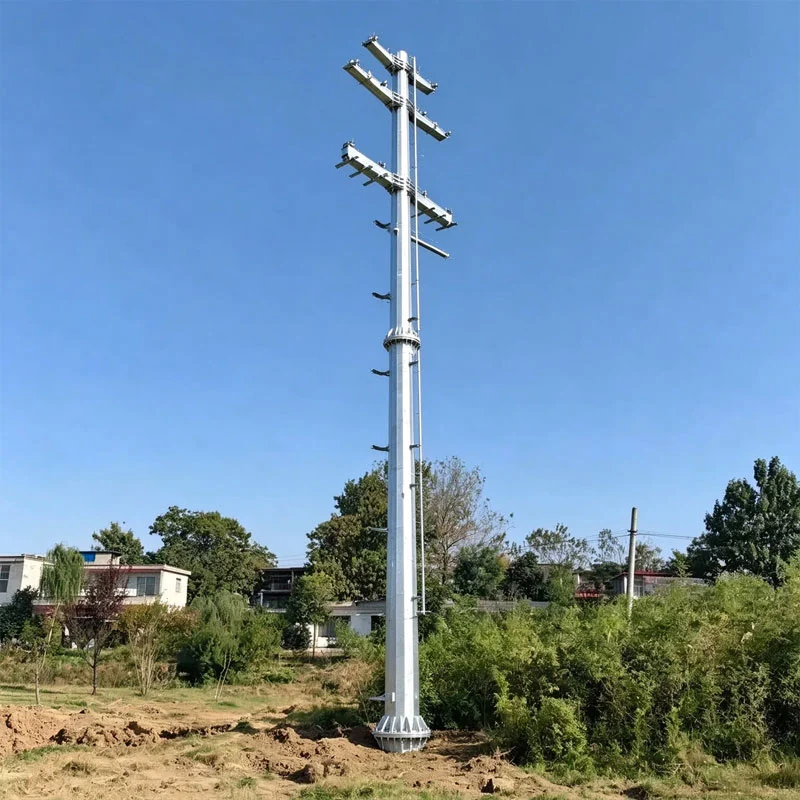

A steel pole tower-also called a tubular steel monopole. It is a single-shaft, self-supporting structure that carries high-voltage transmission conductors on steel cross-arms welded or bolted to the pole body. The pole is typically tapered with a wider base and narrower top, optimized so that the bending moment from wind and conductor loads is distributed efficiently along the shaft.

The key engineering distinction between a monopole and a lattice tower is load path. In a lattice tower, loads travel through hundreds of bolted angle members. In a high voltage power line steel pole tower, loads travel through a single continuous steel tube, which means fewer connections, fewer potential failure points, and a much smaller visual and physical footprint.

Core Advantages

1.Optimized Tapered Cantilever Structure

Tapered pole shaft rationally distributes bending moment, with thicker base to resist overturning load. Fewer bolt joints than lattice towers, lowering the risk of loosening under long-term wind vibration.

2.Long-lasting Hot-dip Galvanized Anti-corrosion Performance

All steel components are fully hot-dip galvanized. Metallurgical-bonded zinc coating protects against coastal salt fog, sand erosion and freeze-thaw cycles, delivering a 30+ year service life without repeated repainting.

3.Lower Civil Work Cost & Rapid Field Erection

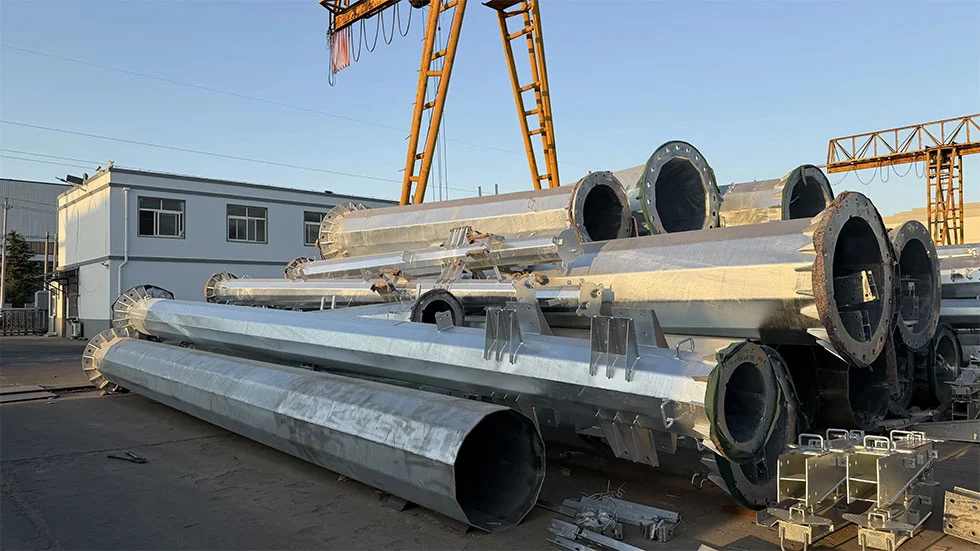

Requires only one single foundation instead of four separate concrete blocks. It cuts excavation and concrete work, especially for rocky or mountainous sites. Segmented poles with standard flanges enable fast hoisting and assembly.

4.Flexible Custom Structural Design

Engineer crossarm layouts for single, double or multi-circuit overhead lines. Adjust pole height, wall thickness and taper ratio according to voltage grade, conductor specs and local meteorological loads. Pre-reserved mounting interfaces for line hardware.

5.Complete Technical Documentation Package

Supply structural calculation reports, fabrication drawings, material test certificates and erection manuals. All documents meet international standards for third-party review and local authority approval.

Technical Parameters

Applications

· Urban Transmission: High-voltage lines through city corridors where ROW is limited and visual impact matters.

· Road Medians & Highways: Poles installed in central medians or alongside highways where a compact foundation is essential.

· Substation Feeder Lines: Short-span connections between substations and main transmission lines.

· Coastal & Harsh Environments: Hot-dip galvanized high voltage power line steel pole towers for salt-spray zones, desert conditions, and industrial areas.

· Renewable Energy: Wind farm and solar plant collector lines where terrain or land use constraints favor monopoles.

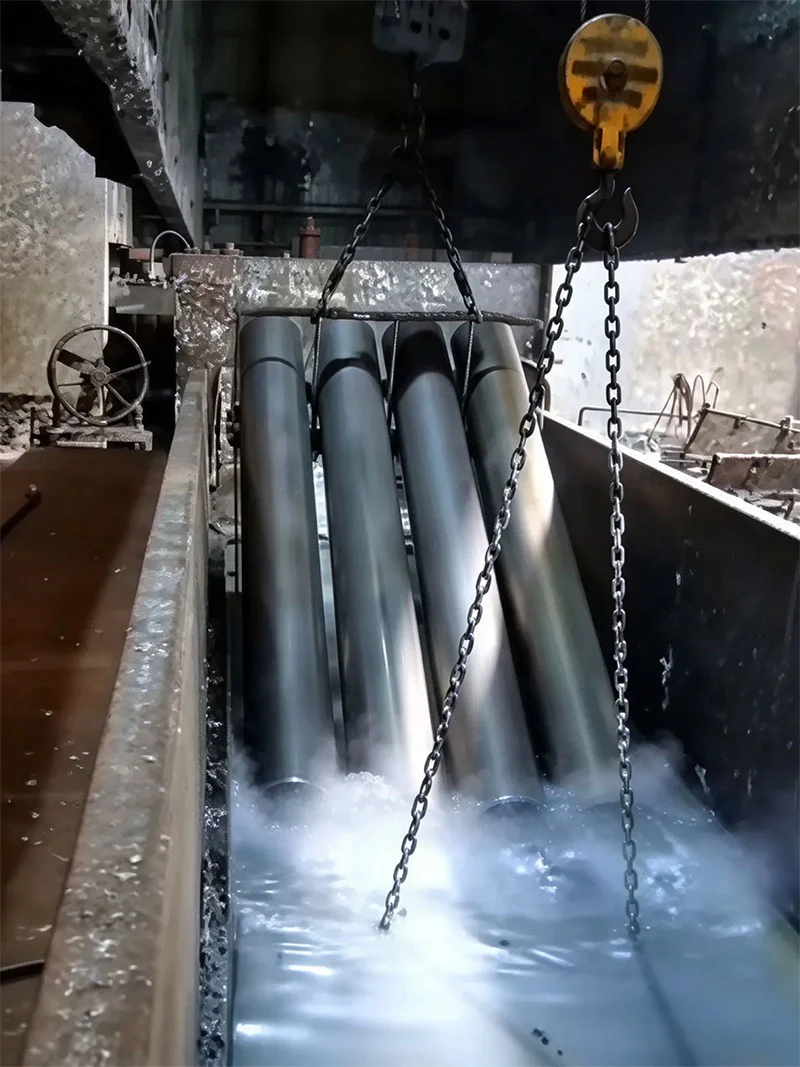

Hot-Dip Galvanizing Process

Outdoor power poles are exposed to rain, humidity, sunlight, atmospheric pollutants, and other environmental conditions for many years. Corrosion protection therefore has a direct effect on long-term maintenance requirements.

Anbang New Energy provides hot-dip galvanizing for high voltage power line steel pole tower. The company's own galvanizing capability allows the steel fabrication and corrosion-protection processes to be coordinated within its manufacturing system. The company specifically highlights corrosion protection for coastal, high-humidity, desert, and other demanding environments.

Why Choose Anbang's Steel Pole Towers?

Manufacturer, not trader: We own the fabrication shop, the CNC lines, and the hot-dip galvanizing bath. You deal directly with the people who build your pole.

Owned galvanizing plant: Coating thickness and adhesion are controlled in-house, not outsourced to a third party with variable quality.

State Grid-approved: Active supplier to State Grid's 750kV backbone projects since 2019-your assurance that the pole meets China's most demanding grid quality standards.

Export-proven: 42+ international projects delivered across Asia, Africa, and the Middle East, with full export documentation and third-party inspection coordination.

Fast lead times: Standard pole designs ship in 20 - 30 days; custom designs in 35 - 45 days from drawing approval.

FAQ

Q1: Can the same steel pole be used for both tangent and angle locations?

A: Not necessarily. Angle and tension locations can experience additional transverse and longitudinal forces. The pole structure, cross arms, foundation connection, and other components may therefore need to be redesigned for the specific loading condition.

Q2: Can a steel pole be used for a high-voltage transmission line?

A: Yes. The suitable voltage level depends on the structural design, conductor arrangement, electrical clearances, and applicable project standards. Anbang's existing product range includes tubular steel poles for transmission and distribution applications up to 220kV.

Q3: Why does the pole usually have a tapered shape?

A: A tapered design allows the pole dimensions to change according to the structural loads along its height. The larger lower section provides the required capacity near the foundation, while the upper section can be reduced where the loads are lower.

Q4: How does the high voltage power line steel pole tower transfer conductor loads to the foundation?

A: Conductor and equipment loads are transferred through the cross arms and pole body toward the base connection. The foundation then resists the resulting vertical loads, shear forces, and bending moments.

Q5: Can the cross arm be customized?

A: Yes. Cross-arm dimensions and arrangement can be developed according to the number of circuits, conductor spacing, insulator configuration, electrical clearance, and tower function.
